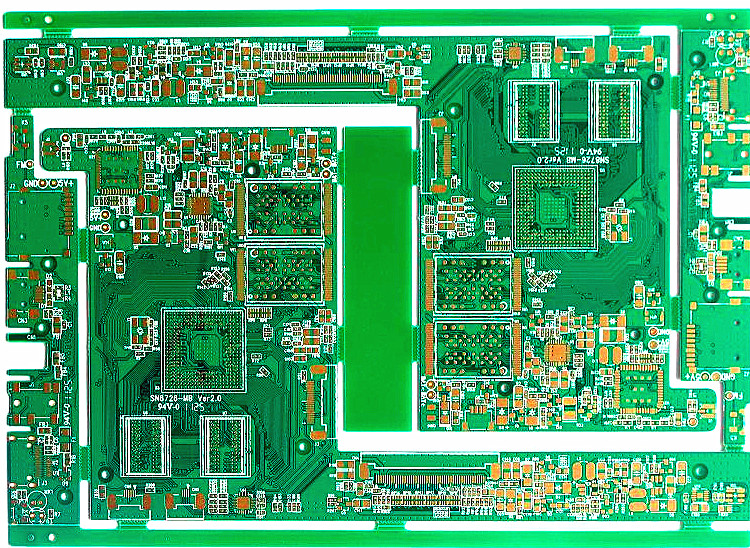

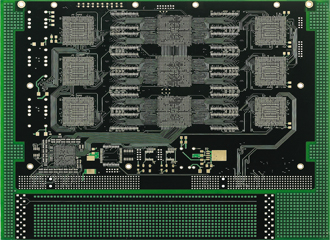

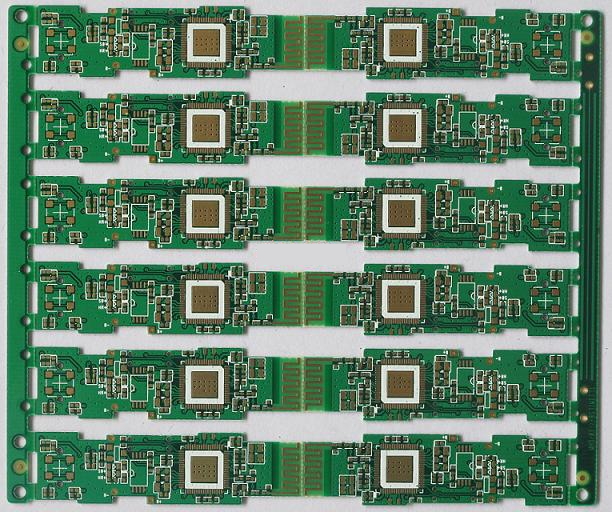

6-layer Impedance PCB

PCB Type >> 6-layer Impedance PCB

6-layer Impedance PCB

Min. Trace / Space Outer: 0.1016 / 0.1016 mm

Min. Drilled Hole: 0.2032 mm

Quote now

Product Features

Minimum trace/space: 4/4 mil (0.10 / 0.10 mm)

Minimum hole size: 8 mil (0.20 mm)

Impedance control: 50Ω single-ended, 110Ω differential ±10%

>> NextPCB High-Speed PCB Materials

Material Code	Brand	Type	Dk	Df	Tg (°C)	Halogen-Free	Datasheet
IT-988G SE	ITEQ	40-56 Gbps	3.2	0.0025	190 (DSC)	Yes	IT988GSE.pdf
R-5785N/M7N	Panasonic	40-56 Gbps	3.3	0.002	200 (DSC)	No	R5785N(M7N).pdf
TU-933	TUC	25-40 Gbps	3.4	0.0025	170 (TMA)	No	TU933.pdf
Tachyon 100G	Isola	25-40 Gbps	3.02	0.0021	215 (DSC)	No	Tachyon100G.pdf
IT-968 SE	ITEQ	25-40 Gbps	3.3	0.0038	185 (DSC)	No	IT968SE.pdf
R-5785/M7	Panasonic	25-40 Gbps	3.6	0.003	200 (DSC)	No	R5785(M7).pdf
R-5775N/M6N	Panasonic	25-40 Gbps	3.4	0.004	185 (DSC)	No	R5775N(M6N).pdf
IT-968	ITEQ	10-25 Gbps	3.7	0.0047	185 (DSC)	No	IT968.pdf
R-5775G/M6G	Panasonic	10-25 Gbps	3.6	0.004	185 (DSC)	No	R5775G(M6G).pdf
TU-883	TUC	10-25 Gbps	3.39	0.0045	170 (TMA)	Yes	TU883.pdf
EM-891	EMC	10-25 Gbps	3.6/3.2	0.0054/0.0045	170 (TMA)	No	EM891.pdf
EM-888K	EMC	10-25 Gbps	3.2/3.1	0.0062/0.0074	170 (TMA)	No	EM888K.pdf
I-Tera MT40	Isola	10-25 Gbps	3.45	0.0031	215 (DSC)	No	ITeraMT40.pdf
R-5725S/M4S	Panasonic	5-10 Gbps	3.8	0.007	200 (DSC)	No	R5725S(M4S).pdf
TU-872 SLK	TUC	5-10 Gbps	3.8	0.009	190 (TMA)	No	TU872SLK.pdf
TU-863	TUC	5-10 Gbps	3.9	0.0095	170 (TMA)	No	TU863.pdf
EM-888	EMC	5-10 Gbps	3.7/3.2	0.0073/0.0079	170 (TMA)	No	EM888.pdf
I-Speed	Isola	5-10 Gbps	3.64	0.0059	180 (DSC)	No	ISpeed.pdf
IT-958GTC	ITEQ	5-10 Gbps	3.7	0.007	170	No	IT958GTC.pdf
IT-170GRA1	ITEQ	1-5 Gbps	4	0.008	180 (DSC)	Yes	IT170GRA1.pdf
TU-862 HF	TUC	1-5 Gbps	4.4	0.01	170 (TMA)	Yes	TU862HF.pdf
Isola-FR408HR	Isola	1-5 Gbps	3.68	0.0092	190 (DSC)	No	IsolaFR408HR.pdf
Isola-FR406	Isola	1-5 Gbps	3.93	0.0167	170 (DSC)	No	IsolaFR406.pdf
EM370(Z)	EMC	1-5 Gbps	4.2/3.8	0.015/0.019	180 (TMA)	Yes	EM370(Z).pdf
EM828G	EMC	1-5 Gbps	3.8/3.3	0.011/0.013	170 (DSC)	Yes	EM-828G.pdf
NP175FM	Nanya	1-5 Gbps	3.89	0.014	170 (DSC)	No	NP175FM.pdf
