PCB & PCBA Testing Methods: Types, Standards & Strategy

A guide to PCB and PCBA test methods: principles, pros and cons, standards, and deployment

Introduction: This page organizes PCB/PCBA quality verification by test category. For each category you’ll find the method, how it works, core benefits and trade-offs, typical use cases, and commonly referenced standards. Use it to design a right-sized test strategy from prototype to mass production.

NextPCB supports SPI, AOI, X-ray inspection, ICT (flying probe or bed-of-nails), and FCT, plus ionic contamination and reliability testing (such as thermal shock and microsection), as part of its quality flow. Upload your files and get a fast, engineer-reviewed quote.

Upload Gerber/ODB++ Get Instant Quote

0. What is PCB Testing?

Definition: PCB testing is the staged verification of bare boards and assembled PCBAs to prove design intent, electrical safety, and long-term reliability from prototype through mass production. It’s not one tool but a layered stack you right-size for risk, volume, and budget—catching issues as early (and cheaply) as possible while maintaining diagnostic depth.

PCB testing vs. PCBA testing: PCB (bare-board) testing checks the unpopulated board before assembly—electrical opens and shorts, dimensions, plating, and material reliability. PCBA testing checks the assembled board—solder and placement quality, electrical connectivity, and functional behavior. Most quality plans use both.

At a glance, the stack:

• Non-contact inspection to stop print/placement defects early (e.g., SPI, AOI).
• Electrical coverage to find opens/shorts and part faults (bare-board E-test, Flying Probe, ICT, Boundary-Scan).
• Hidden/structural checks for BGAs, vias, and laminates (AXI, C-SAM, microsection).
• Finish/cleanliness assurance to prevent latent failures (XRF, solderability tests, ROSE/ion chromatography).
• Reliability & domain-specific validation (SIR/CAF, thermal cycling/shock, TDR/insertion loss for high-speed, HiPot/IR for safety) plus mechanical controls (warpage/coplanarity, profilometry).

Use this guide to choose the minimum-viable set that balances coverage, diagnostic power, cycle time, and fixture cost for your design.

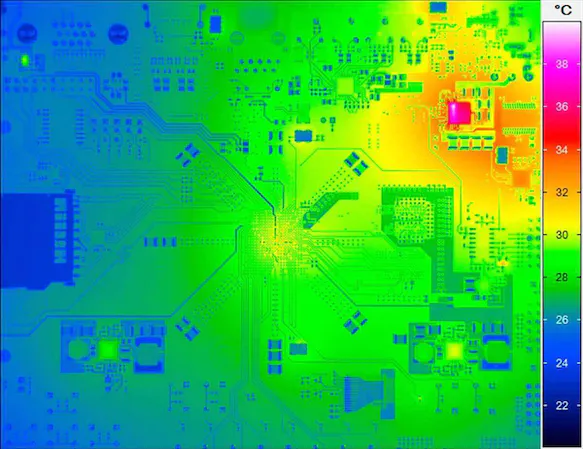

1. Optical & Visual Inspection

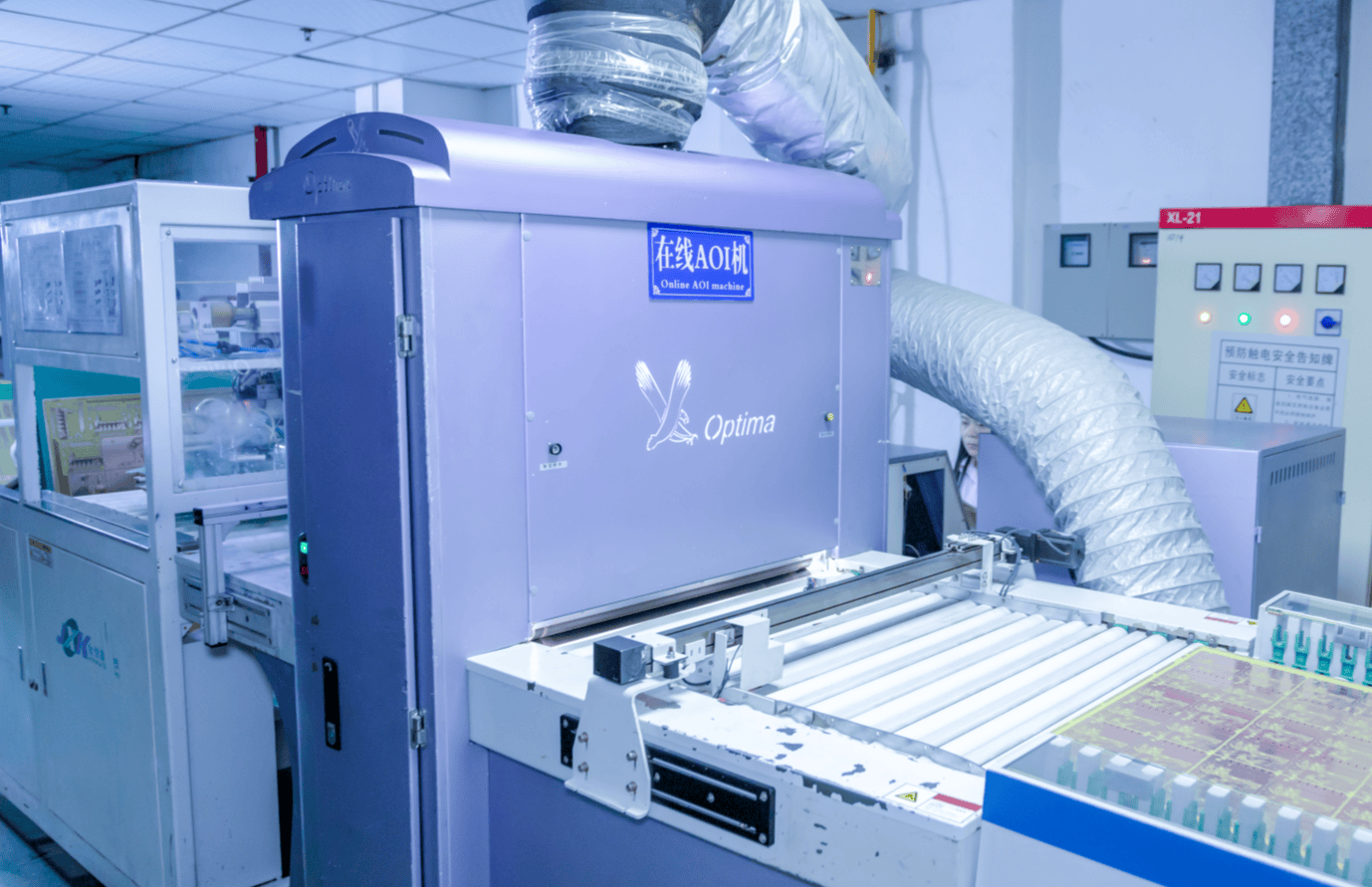

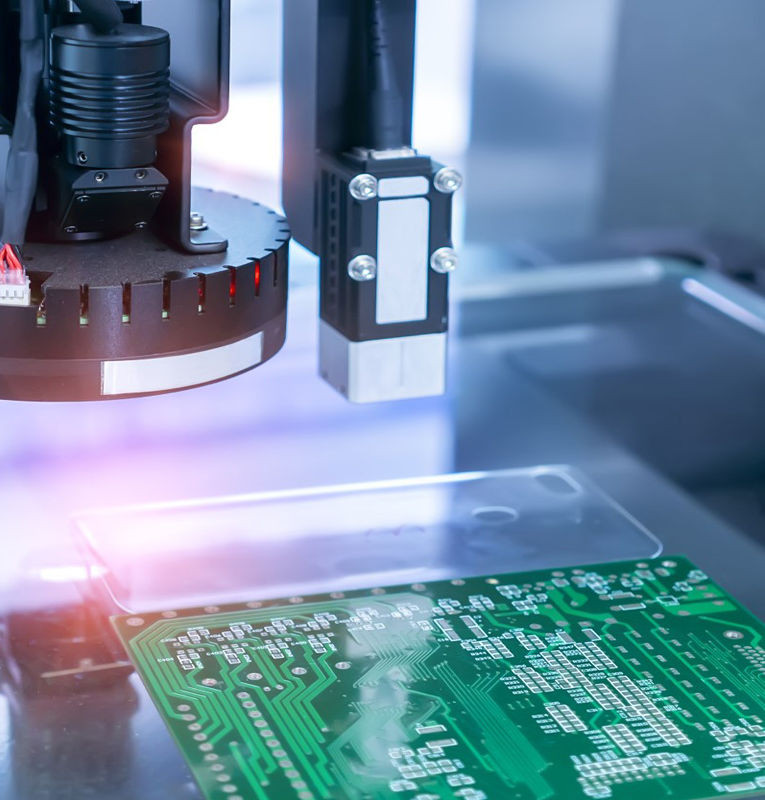

Optical inspection looks for visible defects before they become electrical failures. It ranges from manual checks with a loupe to automated optical inspection (AOI) that compares camera images to a golden reference. Modern 3D AOI also measures height/volume, so it can spot tombstoning, polarity errors, and insufficient solder more reliably than 2D. It’s fast, non-contact, and ideal for early, high-throughput screening.

Takeaway: 3D AOI is becoming mainstream; pairing SPI → AOI creates a closed loop to stop defects early.

2. Pre-print / Solder Paste Inspection (SPI)

Many SMT defects start at the stencil printer, so SPI measures the volume, height, area, and offset of solder paste on each pad. By catching underprint, bridging risk, or misalignment before placement, SPI prevents expensive downstream rework. The data also feeds process control (SPC), helping tune printer parameters and stencil designs. For fine-pitch parts (0201, BGA/QFN), SPI is a must-have gate.

3. Electrical & Functional Test

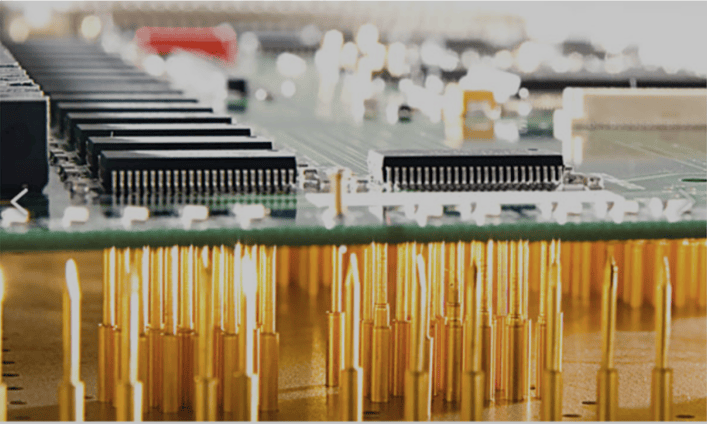

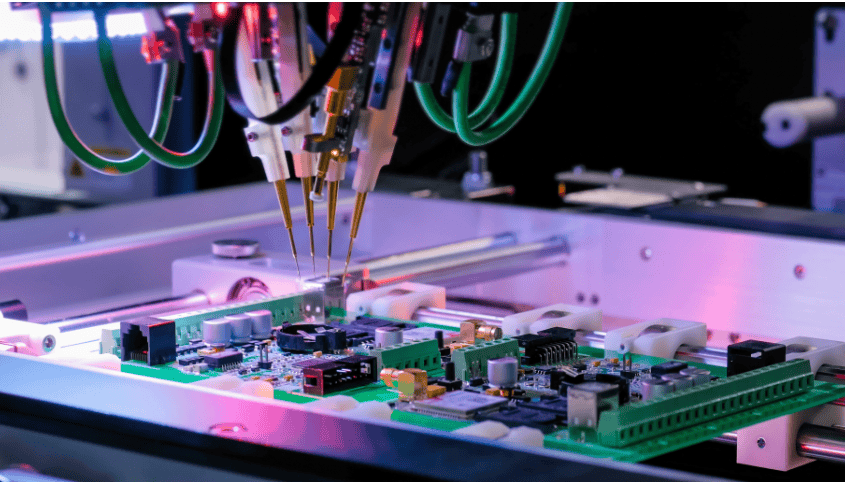

Electrical tests prove that the board isn’t just pretty—it actually works. Bare-board E-test checks fabricated boards for opens and shorts before assembly. For assembled boards, Flying Probe is fixture-less and flexible for prototypes, while ICT uses a bed-of-nails for fast, parallel coverage in mass production. Boundary scan (JTAG) reaches dense or hidden nets without probes, and FCT powers the board in realistic conditions to catch system-level issues. Together they balance coverage, speed, and cost across the product lifecycle.

Takeaway: Use ICT for volume, Flying Probe for prototypes and frequent ECOs, and FCT as the final release gate. See ICT vs FCT for the coverage matrix and the PCBA testing methods guide to choose by build stage. Need FCT on your own build? See our PCBA functional testing service; free functional testing is available for up to 5 boards on qualifying orders.

4. Internal Structure (NDT & Destructive)

Some faults hide inside the board or under components. AXI X-ray reveals voids and bridges in hidden joints like BGA, while C-SAM ultrasound detects delamination and voids in laminates and packages. When root cause demands it, microsectioning cuts and polishes a small coupon to show vias, copper thickness, and resin flow directly. NDT preserves the product; destructive analysis delivers the most detail.

5. Surface Finish, Plating & Solderability

Surface finishes (ENIG, ENEPIG, etc.) and plating quality drive both reliability and appearance. XRF quickly and non-destructively measures coating thickness and alloy ratios to verify process control. Solderability tests quantify how well pads wet with a given alloy, especially after storage or finish changes. These checks reduce risks like black pad, poor wetting, and early field failures.

> HASL vs ENIG: An Ultimate Guide on Surface Finish

6. Cleanliness & Ionic Contamination

Flux residues and trapped ions can trigger electrochemical migration, corrosion, or leakage over time. ROSE gives a fast read on total ionic residues for day-to-day process monitoring, while ion chromatography identifies the exact contaminants during investigations. Cleanliness matters most for high-impedance, high-reliability, or harsh-environment products. Keeping residues in control extends lifetime and reduces intermittent field issues.

7. Reliability & Environmental Stress

Reliability tests accelerate real-world stresses to expose long-term risks. SIR evaluates insulation behavior under heat, humidity, and bias; CAF checks whether conductive filaments may form within the laminate; thermal cycling/shock probes solder and interlayer fatigue. These methods validate new materials and processes, and they’re standard for automotive, medical, and aerospace. The goal is predictable lifetime, not just day-one pass.

8. High-Speed/Dielectric & Safety

As data rates climb, signal integrity becomes as critical as connectivity. TDR confirms controlled impedance and finds discontinuities, while insertion-loss/S-parameters quantify frequency-domain losses and de-embedding-ready behavior for 10+ Gbps links. For power and medical designs, HiPot/IR verifies dielectric isolation to meet safety regulations. These tests ensure both fast signals and safe operation.

9. Mechanical Dimensions, Warpage & Coplanarity

Mechanical accuracy underpins assembly yield. Non-contact profilometry verifies outline, hole sizes, and flatness; warpage under reflow predicts opens or cracks in large-array packages like BGAs. Coplanarity and local stiffness also affect print quality and solder joint geometry. By measuring geometry at room temperature and through the thermal profile, you prevent latent defects before they reach the customer.

10. Deployment Playbooks

This part helps to translate the categories above into practical, right-sized test flows you can run on the line. Each playbook balances coverage, cost, and speed, and can be scaled up or down by risk.

Prototypes / small lots

3D SPI → 3D AOI → targeted AXI (critical parts) → (as needed) Flying Probe / FCT → TDR for controlled-Z → ROSE/IC sampling

Mass production

3D SPI and 3D AOI throughout → ICT as primary electrical test → targeted AXI on BGA/QFN → HiPot/IR where safety isolation applies → XRF and solderability sampling

High-reliability sectors (automotive/medical/aerospace)

Add SIR/CAF, C-SAM, reflow warpage monitoring, periodic microsection. For high-speed links include insertion loss/S-parameters. Verify product-level conformance (e.g., IPC-6012 for via reliability, backdrill, cavities).

Deploy the Playbook on a Real Line

Prototype batches, fast ECOs, high-reliability builds—tell us your priorities and we will propose the right test stack for your build: SPI and AOI gates, X-ray sampling, ICT or flying probe, FCT, and cleanliness and reliability tests where your product needs them.

Start a Prototype Run PCB Capabilities PCBA Capabilities

11. Fast Selection Decision Tree

1. SMT line? → Start with 3D SPI (print) + 3D AOI (post-place/reflow).
2. Hidden joints (BGA/QFN/THR)? → Add AXI (use 3D/CT as needed). Consider C-SAM for lamination risk.
3. Volume vs. variety? → ICT for volume; Flying Probe for small lots/ECOs.
4. Controlled-impedance/high-speed? → TDR (baseline). Add Insertion loss/S-parameters for long, high-data-rate channels.
5. Safety isolation? → HiPot/IR.
6. Flux/cleaning risk? → ROSE for SPC; Ion Chromatography for investigations and compliance.
7. Long-life or harsh environment? → SIR/CAF, thermal cycling/shock, periodic microsection.

• PCB Test Strategies
• Advanced PCB Material Selection & Download at NextPCB

^ Back to top

12. FAQ

Q1. What is PCBA testing, and how is it different from PCB testing?

PCB testing checks the bare board before assembly: opens and shorts, dimensions, plating, and material reliability. PCBA testing checks the assembled board: solder and placement quality, electrical connectivity, and functional behavior. Most quality plans use both.

Q2. What are the main types of PCB testing?

The main categories are optical inspection (AOI), solder paste inspection (SPI), electrical and functional test (flying probe, ICT, boundary scan, FCT), internal structure analysis (X-ray, C-SAM, microsection), surface finish and solderability, cleanliness, reliability and environmental stress, high-speed and dielectric/safety tests, and mechanical or warpage measurements. Sections 1–9 describe each.

Q3. How do you test a PCB?

There is no single test. A typical flow is bare-board electrical test, then SPI, AOI, X-ray on hidden joints (BGA/QFN), ICT or flying probe, and finally FCT, with cleanliness and reliability tests sampled as the product requires. The PCBA testing methods guide shows how to choose by build stage.

Q4. What is bare-board testing (BBT)?

Bare-board testing is the electrical test of the unpopulated PCB. Flying-probe or fixture-based testers check every net for opens and shorts against the netlist before the board goes to assembly. IPC-9252 gives guidelines for it.

Q5. Where’s the line between AOI and AXI?

AOI handles visible features and solder fillets; AXI is required for hidden joints and internal defects. They are complementary.

Q6. Flying Probe vs. ICT?

Use Flying Probe for prototypes and rapid changes; ICT for high-volume, fast parallel coverage and precise isolation.

Q7. ROSE or Ion Chromatography?

ROSE gives total ionic residue for process control; Ion Chromatography identifies which ions and supports root-cause analysis and customer reporting.

Q8. XRF vs. microsection for plating?

XRF is fast and non-destructive for routine release; microsection is destructive but reveals full stack details—best for validation and failure analysis.

Q9. When to run SIR/CAF?

On new materials/processes, high-reliability products, and periodically for surveillance.

13. Glossary & Standards Quick Reference

Turn This Guide into Your Test Plan

Upload your design and tell us your priorities (speed, coverage, cost). NextPCB will propose a phased test strategy and deliverables you can approve in one go. Already have a test plan? See our PCBA functional testing service.

Upload & Quote Engineer Consultation

Conclusion

A layered strategy—SPI → AOI → AXI/E-test → reliability/cleanliness → final release—is the modern best practice for PCB/PCBA quality. Tailor your stack to product traits (high-speed, safety, lifetime) and to build phase (prototype vs. volume). The category-by-category map above helps you choose the minimum viable yet risk-appropriate test set while keeping cost and throughput under control. To go deeper, read 13 Popular PCB Test Methods in PCB Manufacturing.
