When it comes to ensuring the quality and reliability of electronic products, PCBA functional testing is an indispensable step. At HQ NextPCB, we recognize the critical role that functional testing plays in the manufacturing process, and we are committed to ensuring our clients achieve the best yield and reliability possible. In this blog, we will delve into the essentials of PCBA functional testing, why it is necessary, the types of testing services we offer, and how we can help you verify your products effectively.
Looking for functional testing on your own PCBA order? See our PCBA functional testing service for what we test, how it works and how to send us your test plan.
Now you can get USD $200 off NextPCB's professional turnkey PCB assembly service. Click here to learn more
What is PCBA Functional Testing?
PCBA (Printed Circuit Board Assembly) functional testing involves subjecting assembled circuit boards to a simulated operational environment. The goal is to make the board operate under various controlled conditions and obtain feedback that verifies functionality. Simply put, it is a series of tests conducted on assembled PCBs to ensure they meet design requirements and usage needs.
Functional testing may be combined with other tests such as ICT and firmware flashing to improve production efficiency. For a deeper look at the method, read our functional circuit test (FCT) guide; to decide which test fits your board, see ICT vs FCT.
Why is PCBA Functional Testing Important?
Functional testing has its merits over other testing methods for several reasons.
Ensures Functionality and Compliance: A device may appear electrically sound, but if it does not possess the required functionality, then it is useless. Functional testing is a black-box testing method that looks for required outputs from an end-user perspective without looking at the internal structure. Functional testing can prevent defective units from reaching the market and help highlight problematic areas in the manufacturing process.
Verifying Production Processes: Functional testing verifies the entire turnkey process when handing PCB assembly over to a contract manufacturer, especially if they procure the components on your behalf. Major errors such as incorrect polarity or part value, fake parts, or PCB shorts can be identified instantly, which can then be corrected at the assembly facility, saving valuable time.
Functional testing plans, in combination with other tests, can be designed to achieve different goals depending on the quantity and type of device to be tested:
1. Functional Testing on one device: Testing one device is enough to verify PCB manufacture, procurement and placement e.g. simple power on/off test for prototypes. Further testing on a handful of devices can help debug problems.
2. Mass production random sampling: To periodically monitor manufacturing processes during the entire production run.
3. 100% small batch testing: Verifies all devices function as intended. Valuable for high-value devices and where failures are not acceptable.
Types of Functional Testing supported by HQ NextPCB
HQ NextPCB has the expertise and equipment to perform various functional tests to ensure your PCB assemblies meet your high standards, including:
- Electrical Connectivity: Verify the electrical performance, including voltage, current, and power consumption.
- Communications: Confirm the reliability and correctness of communication interfaces (e.g., UART, I2C, SPI, USB, HDMI, Ethernet).
- Signal Integrity: Signal integrity and timing accuracy.
- Memory: Test the read and write functionality of RAM and flash memory.
- Functional Module Test: Evaluate the operation of various modules like buttons, LED indicators, and sensors.
- Clock Test: Check the frequency and stability of clock signals.
- Fault Detection and Fault Tolerance Test: Simulate fault conditions to test the board's fault tolerance.
- Software Functional Test: Assess the functionality and performance of embedded software or firmware.
Sample Test Instructions
A test plan can be as simple as a power-on check (for example, apply 5 V and confirm that all LEDs light up with equal brightness) or a full software-controlled test with firmware programming. See the full sample test instructions on our PCBA functional testing service page.

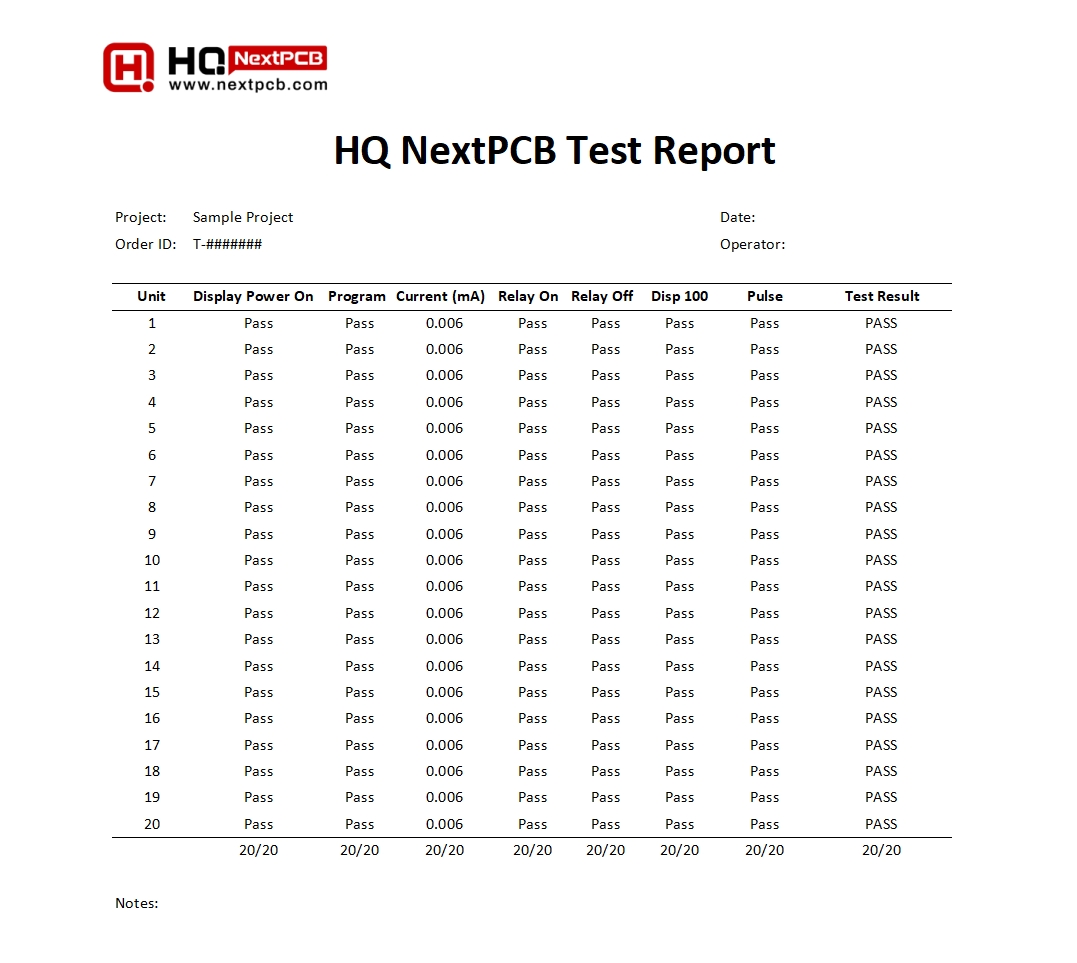

PCBA Functional Test Sample：
How does HQ NextPCB provide Functional Testing services?

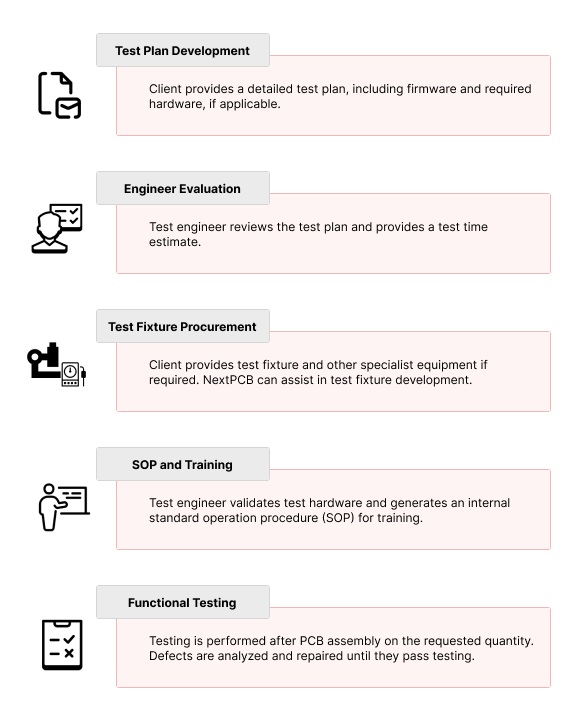

To deliver effective functional testing, we follow a structured process:
Free Functional Testing for Prototypes
PCBA functional testing is a vital part of the electronics manufacturing process, and HQ NextPCB is here to support you every step of the way. Our comprehensive testing services help you ensure the quality, reliability, and performance of your products, ultimately leading to higher customer satisfaction and reduced costs.
HQ NextPCB offers free functional testing for up to 10 boards on qualifying orders. This service verifies the turnkey process and helps ensure your boards work before they leave the factory, saving you time and money on the route to final production.
Contact us at support@nextpcb.com to confirm whether your order qualifies, or learn more about our functional testing service.
Quote Now
