Thru-Hole Assembly also named through-hole assembly, the modern technology, describes the placing system utilized for digital elements that entail using leads on the elements that are put right into openings pierced in the print circuit board (PCB) as well as soldered to pads on the contrary side either by the hands-on setting up (hand positioning) or by the use automated insertion install makers.
The top quality of the solder joint is necessary for numerous factors. The solder joint is the real link between the element as well as the board. The top quality of the solder joint amounts to the high quality of the link. The "appearance" of the solder joint is lesser yet is typically a sign of the top quality of the solder joint.

Features of thru-hole

While thru-hole placing gives solid mechanical bonds when contrasted to SMT methods, the extra boring needed makes the boards a lot more costly to generate. They likewise restrict the readily available directing location for signal traces on layers right away listed below the leading layer on multilayer boards considering that the holes have to travel through all layers to the contrary side. Therefore, thru-hole placing methods are currently normally scheduled for bulkier or much heavier parts such as electrolytic capacitors or semiconductors in bigger plans such as the TO-220 that call for the extra installing toughness, or for parts such as plug ports or electromechanical relays that call for excellent stamina in assistance.
Style designers frequently favor the bigger thru-hole as opposed to surface area place components when prototyping, since they can be quickly made use of with breadboard outlets. Nevertheless, high-speed or high-frequency styles might call for SMT innovation to reduce roaming inductance as well as capacitance in cable leads, which would certainly hinder circuit features. Ultra-compact styles might additionally determine SMT building and construction, also in the model stage of style.

Action in soldering a thru-hole element:

The following Picture shows the basic action in soldering a thru-hole element.

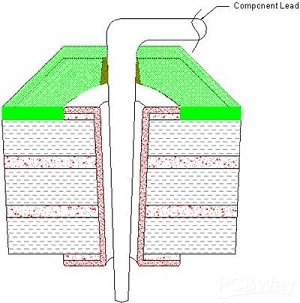

Step 1

The hole and also pad to be soldered are ready, with the lead being put into/through the hole. The leader ought to be positioned in such a way to maintain the bend over the firm location, lowering warmth as well as solder needs.

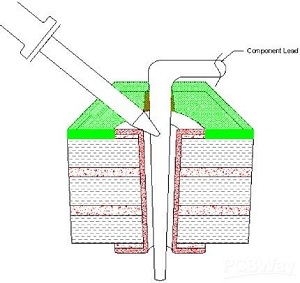

Step 2

Warm is used equally to the lead and also the pad/hole, warming the product so the solder will certainly abide by both surface areas.

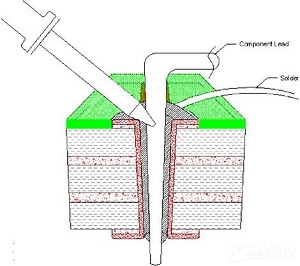

Step 3

The solder gets in touch with the completion of the iron, which triggers the solder to become fluid and also circulation right into the hole.

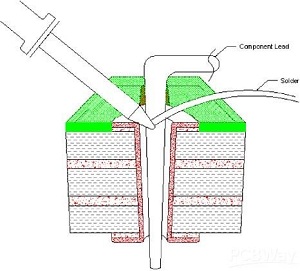

Step 4

The solder streams with the hole, producing a pile on both all-time lows as well as topside. Because this lead was soldered from the topside, the bottom side ought to be examined for ample solder as well as joint high quality. Some setting up might call for solder from both sides to make certain top quality. Sufficient clearance inside the hole enables excellent solder circulation via the board, enabling just one side to have actually solder used. Limited clearances might call for soldering on both sides, enhancing soldering time.
