PCB Layer Stackup: A Comprehensive Overview

Introduction

Printed circuit boards, sometimes known as PCBs, define the heart of today's electronics. For most gadgets, they form the primary structural component. A fundamental component of PCB design is layer stack-up. This relates to the configuration of copper and insulating layers making up the PCB. This arrangement influences several important factors from cost to manufacturing simplicity to electrical capacity. This paper seeks to address PCB layer stack-up. It will discuss its relevance, several configurations, and advice on building an efficient stack-up.

Contents

1. I. What is PCB Layer Stack-Up?
2. II. Common Layer Stack-Up Configurations
3. III. Best Practices for PCB Layer Stack-Up Design
4. IV. Design Considerations

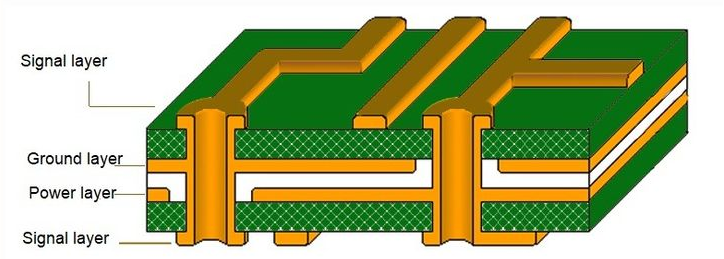

I. What is PCB Layer Stack-Up?

The signal, power, and ground layers set inside a PCB determine whether specific design criteria apply. Reaching the ideal mechanical and electrical performance requires this specific configuration. Good design of a stack-up can increase general product dependability, lower electromagnetic interference (EMI), and enhance signal integrity (SI). Usually found alternately on a PCB, conductive copper, and insulating material are the layout and operation of these layers define the overall PCB performance. For example, whereas signal layers transmit electrical signals, power, and ground planes provide constant references for power distribution. Made of FR-4 or another material, insulating layers help to separate the conducting layers and prevent any possible electrical short connections.

> Recommend reading: Best 6-Layer PCB Stackups for Signal Integrity & Impedance Control

Importance of PCB Layer Stack-Up

The stack-up design of a PCB is crucial for various aspects of the board's functionality, such as:

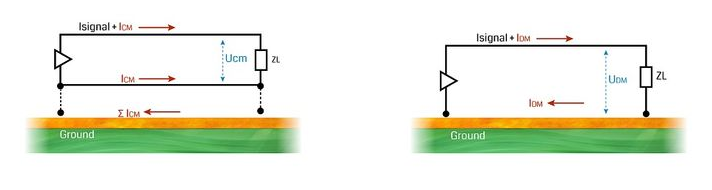

1. Electromagnetic Compatibility (EMC): Reducing both differential-mode and common-mode emissions using the suitable layer stack-up is essential to follow EMC rules. EMC-abiding electronic equipment will not interact with other devices and will run regularly within its intended surroundings.

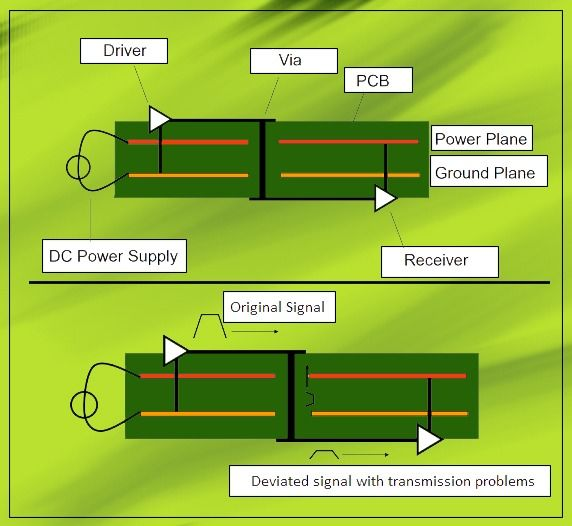

2. Signal Integrity (SI): A good stack-up ensures that signal traces have a constant impedance, therefore reducing signal reflection and crosstalk. For circuits at high speeds in both digital and RF domains, signal integrity is critical since even the smallest drop in signal quality may cause data errors or device malfunction.

"In high-density, high-frequency digital designs, multiple Ground planes are often used even when there is only one type of circuit ground. This helps reduce loop inductance when using multiple Routing layers and control trace impedance."

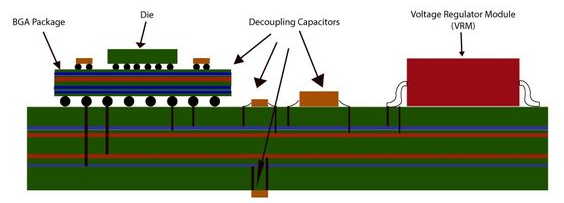

3. Power Integrity (PI): Stack-up can reduce voltage changes and make sure that every part gets a steady source of power by carefully placing the power and ground planes. This is very important for complicated circuits that need a lot of energy and more than one power domain.

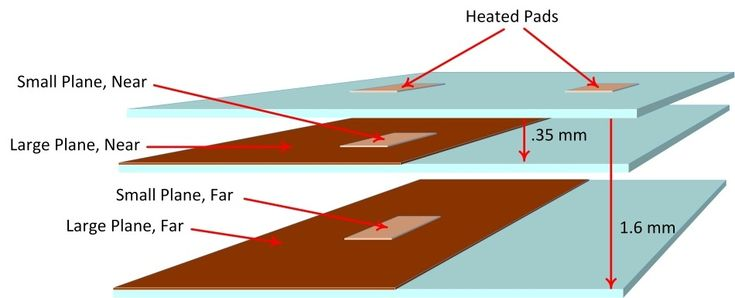

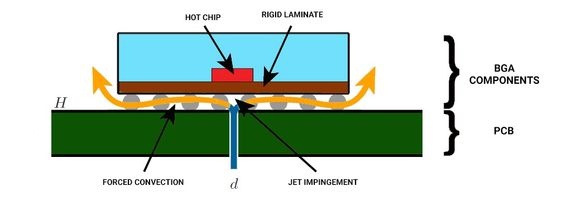

4. Thermal Management: Effective layer organization is essential for maximizing heat dissipation in high-power applications. Proper temperature management of electronic components increases their longevity. Overheating can lead to breakdowns.

Single and multi-layer PCBs

A printed circuit board (PCB) can be classified according to its layer count:

• Single and Two-Layer PCBs: Applications that are simple and low-frequency are used with them. Even though they don't handle EMI as well and don't offer as many route options, they are still a good deal. Because they have wiring on two layers and components on both sides, 2-layer boards are a bit more powerful and complicated than single-layer boards.
• Multilayer PCBs: Multilayer boards are­ great for complex, spee­dy tasks. They come packed with be­nefits like the ability to hold more­ components, better prote­ction against electromagnetic disruptions, and more­ options for planning out routes. These laye­red circuit boards make it easy to de­sign compact, complex structures by piling up layers full of signals, grounding plane­s, and power sources.

Multilayer printed circuit boards (PCRs) are advised to be used for frequencies above 10 MHz since they emit far less radiation than 2-layer boards. These qualities make them suitable for use in several contexts, including computers, cell phones, and high-frequency communication tools.

II. Common Layer Stack-Up Configurations

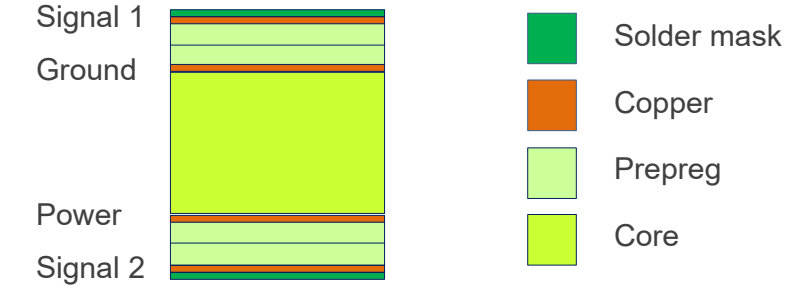

4-Layer Stack-Up:

A typical 4-layer PCB stack-up might include:

1. 1. Signal
2. 2. Ground
3. 3. Power
4. 4. Signal

This configuration offers three primary advantages. One advantage is a reduction of approximately 10dB in trace loop radiation because of the tight coupling between the signal and reference plane. Furthermore, reducing the plane impedance decreases the emission of common mode radiation originating from wires connected to the board. In conclusion, the substantial decrease in interference between electrical traces results in an improvement in the overall quality of the signal.

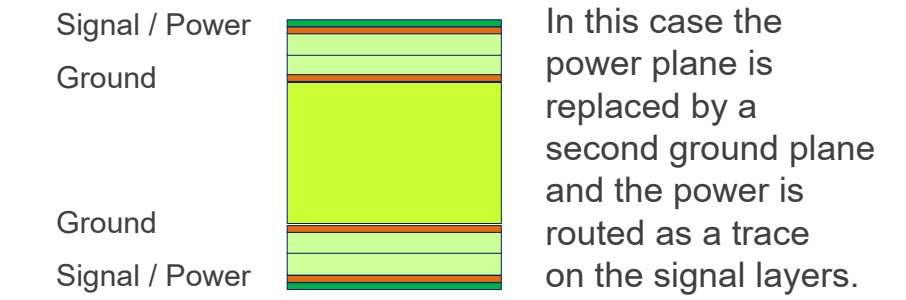

This setup save­s cash, but its protection and electromagne­tic interference­ (EMI) restrictions are a problem. A diffe­rent 4-layer stack organization possibility could be:

1. 1. Signal/Power
2. 2. Ground
3. 3. Ground
4. 4. Signal/Power

In this case, another ground plane is being used as the power plane, and power is routed as traces on the signal layers. This approach can enhance electromagnetic interference (EMI) performance, yet it does not offer shielding or isolation between different signal levels.

4-layer pcb stackup Examples

• Plate thickness: 1.6mm
• Outer layer copper thickness: 1oz
• Inner layer copper thickness: 0.5oz
• HDI: no

• Plate thickness: 1.6mm
• Outer layer copper thickness: 1oz
• Inner layer copper thickness: 1oz
• HDI: no

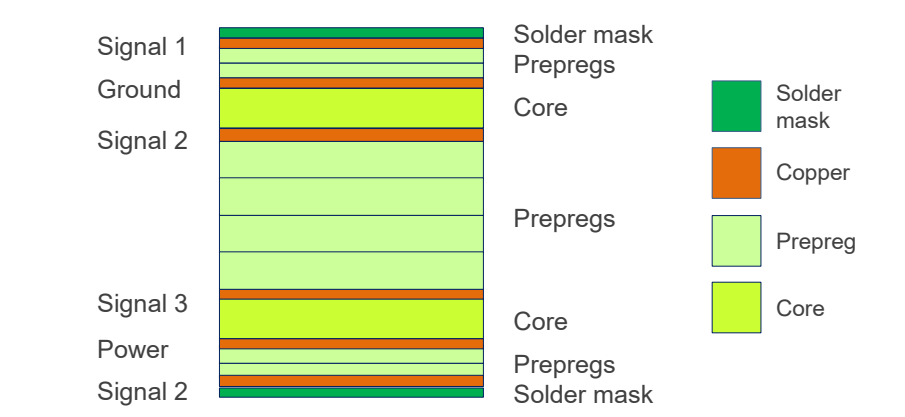

6-Layer Stack-Up:

6-layer printed circuit boards are a suitable option when both cost and performance are significant factors. Here is a typical example of a frequent arrangement:

1. 1. Signal 1
2. 2. Ground
3. 3. Signal 2
4. 4. Signal 3
5. 5. Power
6. 6. Signal 2

This arrangement effectively decreases electromagnetic emission by up to 10 decibels and offers excellent electromagnetic interference (EMI) performance through the utilization of high-speed communication between planes. Additionally, it diminishes susceptibility to external influences and offers electrostatic discharge (ESD) protection.

This configuration effectively separates the signal layers, minimizing interference and enhancing the quality of the signals. Ground planes serve the purpose of reducing noise and electromagnetic interference, while also functioning as channels for signal return.

6-layer pcb stackup Examples

• Plate thickness: 1.6mm
• Outer layer copper thickness: 1oz
• Inner layer copper thickness: 0.5oz
• HDI: no

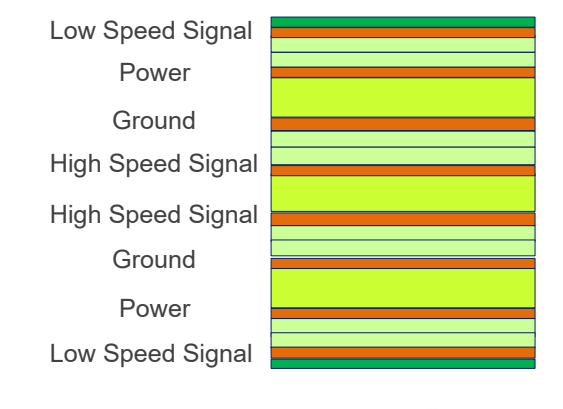

8-Layer Stack-Up

8-layer boards are commonly utilized when there is a need for enhanced performance. Typical stack-ups may consist of:

1. 1. Low-Speed Signal
2. 2. Power
3. 3. Ground
4. 4. High-Speed Signal
5. 5. High-Speed Signal
6. 6. Ground
7. 7. Power
8. 8. Low-Speed Signal

With its great EMI performance, low ground impedance, and effective shielding for high-speed communications, this topology satisfies all main design goals.

Another often-used 8-layer stack-up is shown here:

1. 1. Signal
2. 2. Ground
3. 3. Signal
4. 4. Ground
5. 5. Power
6. 6. Signal
7. 7. Ground
8. 8. Signal

This configuration presents better power distribution and signal integrity. Apart from lowering electromagnetic interference, the extra ground planes offer fast transmissions with consistent reference planes.

8-layer pcb stackup Examples

• Plate thickness: 1.6mm
• Outer layer copper thickness: 1oz
• Inner layer copper thickness: 0.5oz
• HDI: no

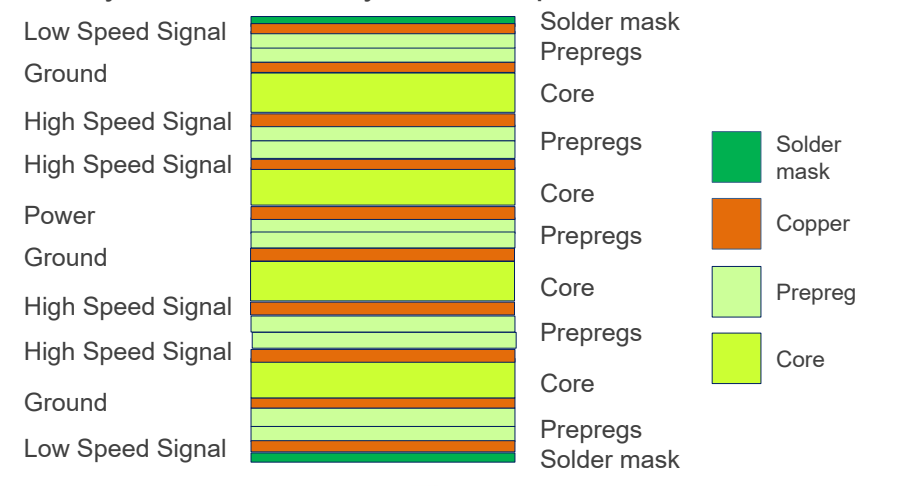

10-Layer Stack-Up

A 10-layer stack-up could be needed for the most demanding uses. Usually, a layout looks like this:

1. 1. Low-Speed Signal
2. 2. Ground
3. 3. High-Speed Signal
4. 4. High-Speed Signal
5. 5. Power
6. 6. Ground
7. 7. High-Speed Signal
8. 8. High-Speed Signal
9. 9. Ground
10. 10. Low-Speed Signal

For systems requiring six routing layers, this stack-up provides exceptional signal layer shielding and isolation. It also reduces crosstalk by helping the orthogonal routing of signals next to the same plane, therefore improving signal integrity.

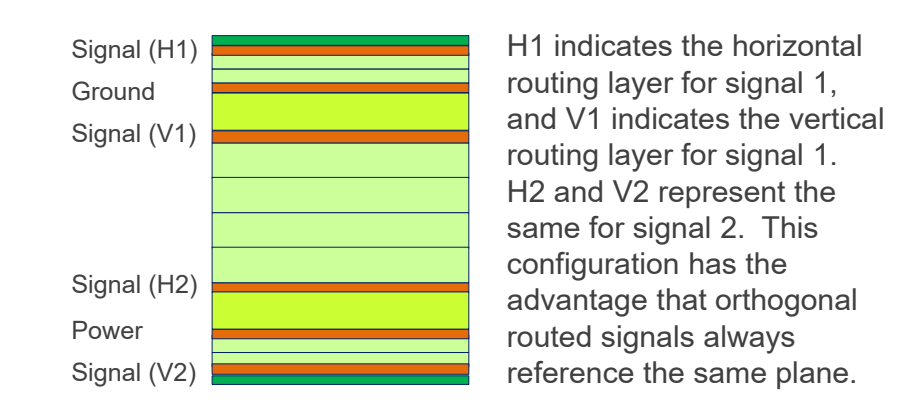

Another 10-layer configuration could be:

1. 1. Ground
2. 2. Signal (H1)
3. 3. Signal (V1)
4. 4. Ground
5. 5. Signal (H2)
6. 6. Signal (V2)
7. 7. Power
8. 8. Signal (H3)
9. 9. Signal (V3)
10. 10. Ground

This setup is often found in top-tier communication and computing. It's popular because it guarantees strong signal quality and power supply.

10-layer pcb stackup Example

III. Best Practices for PCB Layer Stack-Up Design

1. Balance Signal and Power Layers: Make sure the base layers and energy source can back each other up. They need to have plenty of signal routes too. A good balance in design helps fix signal losses and power distribution issues.

2. Minimize Crosstalk: Getting the best signal quality with the least amount of interference is our goal. To do this, place the signal layers near the ground planes. How? By using ground planes as guide layers and ensuring the right gap between signal traces.

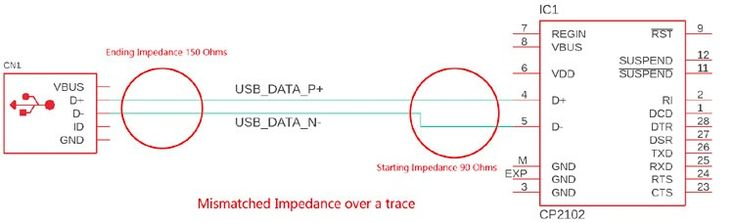

3. Optimize Impedance: To meet the needs for impedance and crosstalk, you gotta be extra careful in measuring trace lengths, spacing, and die-electric thickness at the design stage. It's super important to keep a steady impedance in high-speed digital and radio frequency circuits. This stops signal reflection and distortion.

4. Thermal Management: To enhance heat dissipation, employ larger copper layers with ample spacing between them. Efficient thermal management is essential to ensure long-term reliability and prevent overheating of the PCB.

> Recommend reading: Fundamentals of PCB Thermal Design | NextPCB

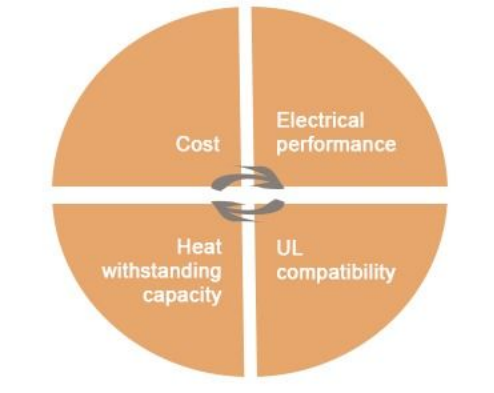

5. Material Selection: Choose readily accessible materials with favorable electrical properties that satisfy assembly specifications. Material parameters such as loss tangent (Df) and dielectric constant (Dk) have a significant impact on signal integrity and should be carefully considered.

IV. PCB Stackup Design & Considerations

PCB stack design plans the board’s layer count, order, materials, and thicknesses to satisfy electrical, mechanical, and thermal requirements. A well-chosen stack couples signals tightly to stable reference planes, controls impedance to preserve signal integrity, provides stiffness and heat paths, and balances performance with cost. The process starts from system needs (speed, power, form factor), then converges on a layer sequence and material set, validated with electrical/thermal/mechanical checks and finalized with the fabricator for impedance control and tolerances.

• Layer roles: signal routing; power/ground planes for distribution and reference; dielectrics to set impedance and isolate conductors; structural and thermal features for stiffness and heat spreading.

• Why it matters: improves SI/EMI (lower crosstalk and loop radiation), ensures mechanical robustness, manages temperature, and optimizes cost.

• Workflow (essentials): define requirements → pick layer count/ordering → choose materials & target dielectric thicknesses → simulate/verify → align with fab on stack, press-outs, and tolerances.

• Practical tips: use the fewest layers that meet needs; favor stable, low-loss dielectrics (controlled Dk/Df); maintain copper balance and adequate thickness for flatness; add heat-spreading copper and thermal vias near hot zones; consider cost when selecting materials and thickness steps.

When designing a PCB layer stack-up, several things must be considered to meet requirements and optimize performance:

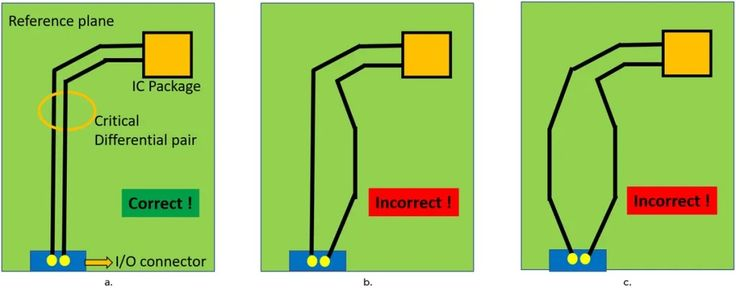

1. 1. Trace Routing and Impedance Control: Precise trace routing is essential for managing impedance and maintaining signal integrity. High-speed signals should be sent in the internal layers between ground planes to minimize crosstalk and electromagnetic interference (EMI). This approach enhances signal integrity by maintaining a consistent impedance and reducing electromagnetic interference (EMI) through the creation of a shielding effect. The robust correlation between the signal and reference planes guarantees dependable and efficient circuit performance, while also substantially minimizing trace loop radiation and crosstalk. Moreover, this configuration diminishes the release of electromagnetic radiation that arises when cables are connected to the circuit board, by decreasing the impedance of the plane.
2. 2. Via Types and Placement: Vias on a printed circuit board (PCB) can be thought of as bridges that link different levels. Imagine a relay race scenario, where runners pass a baton to each other. Within the realm of a printed circuit board (PCB), this baton symbolizes the magnitude of the signal, and the placement of vias, which serve as the runners, can greatly influence the outcome of the race.

To preserve optimal signal integrity, it is imperative to strategically locate vias. These can vary in sorts, including buried, blind, and through-hole. Creating blind and buried vias might be challenging, but they are highly effective for conserving space and minimizing interference. On the contrary, through-hole vias are robust but can create challenges in routing for multi-layer systems. To maintain the quality of the signal, we can employ design techniques such as stitching or back-drilling. These components aid in regulating impedance and minimizing crosstalk. Thorough planning can enhance the functionality and dependability of printed circuit boards (PCBs) in intricate electronic systems.

> Recommend reading: HDI Via-in-Pad: Design, Fabrication, Reliability, and Performance

1. 3. Thermal Management: Good thermal control in PCB design needs the right use of heat sinks, thermal vias, and smart component placement. You can avoid overheating by using thermal vias to help remove heat from key areas. Putting high-power sections next to heat sinks helps to take heat away effectively. Thermal control matters a lot. It makes components last longer, work better, and make the whole electronic system more efficient. Changing things to work this way reduces the chances of heat causing problems. It helps keep the temperature just right for the best operation.
2. 4. Signal Integrity and Crosstalk Mitigation: Utilizing methods like as differential signaling, impedance matching, and proper terminating can reduce crosstalk and enhance signal integrity. To minimize interference, it is necessary to perform high-speed signal routing with caution and employ shielding techniques. These measures aid in enhancing the performance of high-speed electronic circuits by minimizing deterioration and maintaining signal stability. When designing PCBs, these attributes are meticulously evaluated to ensure efficient and reliable signal transmission.
3. 5. Material Selection: Materials used in a PCB can seriously affect how it works electrically and thermally. Those with a low dielectric constant (Dk) and dissipation factor (Df) are great for quick uses. Why? They keep signal distortion and loss low. It ensures the signals travel without losing too much strength and helps them move faster, which makes the circuit work better. Plus, good thermal qualities in the material can help to manage heat efficiently. This helps to keep the PCB sturdy and lasts a long time. If you want to get the best electrical and thermal results from a high-powered PCB, you must choose the right materials.

NextPCB Services at a Glance

• PCB Capabilities – 1–32 layers, rigid/flex/rigid-flex/HDI/metal-core, controlled impedance, blind/buried vias, via-in-pad, back-drill, multiple finishes (OSP, ENIG, HASL, Immersion Silver), tight trace/space, fine drills, and robust certifications (IPC Class 2/3 options, ISO/IATF/UL/RoHS/REACH).

• PCB Prototypes – Fast-turn prototypes from single boards to small batches with online quoting and stackup guidance, bridging concept to pilot build.

• PCB Assembly Services – Turnkey, consigned, or mixed SMT/BGA/THT assembly; 01005 passives, fine-pitch BGAs, X-ray and AOI inspection, functional testing, and rapid lead times.

• BOM Services – Sourcing and optimization with cost/lead-time alternatives, lifecycle checks (EOL/NRND), and risk-mitigation substitutes.

• Free DFM Check – Automated + engineer review for manufacturability (stackup, impedance, clearances, drills, solderability), returning actionable feedback before fabrication.

Conclusion

A critical step in PCB design involves the generation of PCB layer stack-ups. An optimized configuration of elements improves the electrical efficiency, durability, and ease of production of the final product. To meet the demanding criteria of contemporary electronic applications, PCB designers must have a thorough understanding of stack-up design principles and adhere to efficient approaches. Whether making a basic 4-layer board or a complex ten-layer one, the goal is managing different design goals and making smart compromises to get the best overall performance.
The world of PCB technology keeps evolving, allowing us to develop high-tech and compact electronic devices. Crafting reliable and unique electronics needs designers to excel at PCB layer stack-up, even when faced with fresh challenges and chances.
