HQ NextPCB Introduces New PCB Gerber Viewer: HQDFM Online Lite Edition

Posted:07:01 PM July 24, 2023 writer: Carmen Zheng

HQ NextPCB is proud to announce the release of HQDFM Online Gerber Viewer and DFM Analysis Tool, free for everyone. With HQDFM, NextPCB hopes to empower designers with the DFM tools and knowledge to perfect their designs as early as possible, where problems are the least costly.

The PCB manufacturing industry has and still relies on the Ucamco Gerber standard to communicate PCB production to manufacturers, which are often located overseas. While the 2D image format overcomes language barriers, the language of PCB Design for Manufacture is still ambiguous to many inexperienced designers and the division between PCB design and PCB manufacture remains an expensive obstacle leading to missed deadlines, hit-and-miss runs and quick-to-fail products.



There are still many designers that send off their production files without any knowledge of what the files contain. Resolving issues with the fab house becomes a challenge for both sides without the appropriate tools and knowledge to debug the design, which is something we hope to change for everyones benefit,

HQ NextPCB CEO, Alex Chen



HQDFM Gerber Viewer is a completely free, online tool for displaying and reviewing PCB Gerber files and OBD++ files. It incorporates HQDFMs Design for Manufacture (DFM) algorithms based on NextPCBs 15 years of high-reliability manufacturing expertise and current industry standards.

Unlike EDA softwares built-in DRC checks, HQDFM allows designers to navigate and analyze the production files and check for design issues that may impact manufacturing or cause long-term reliability issues. With HQDFM, designers are given a manufacturer’s perspective and have valuable insights into how they can improve their designs.

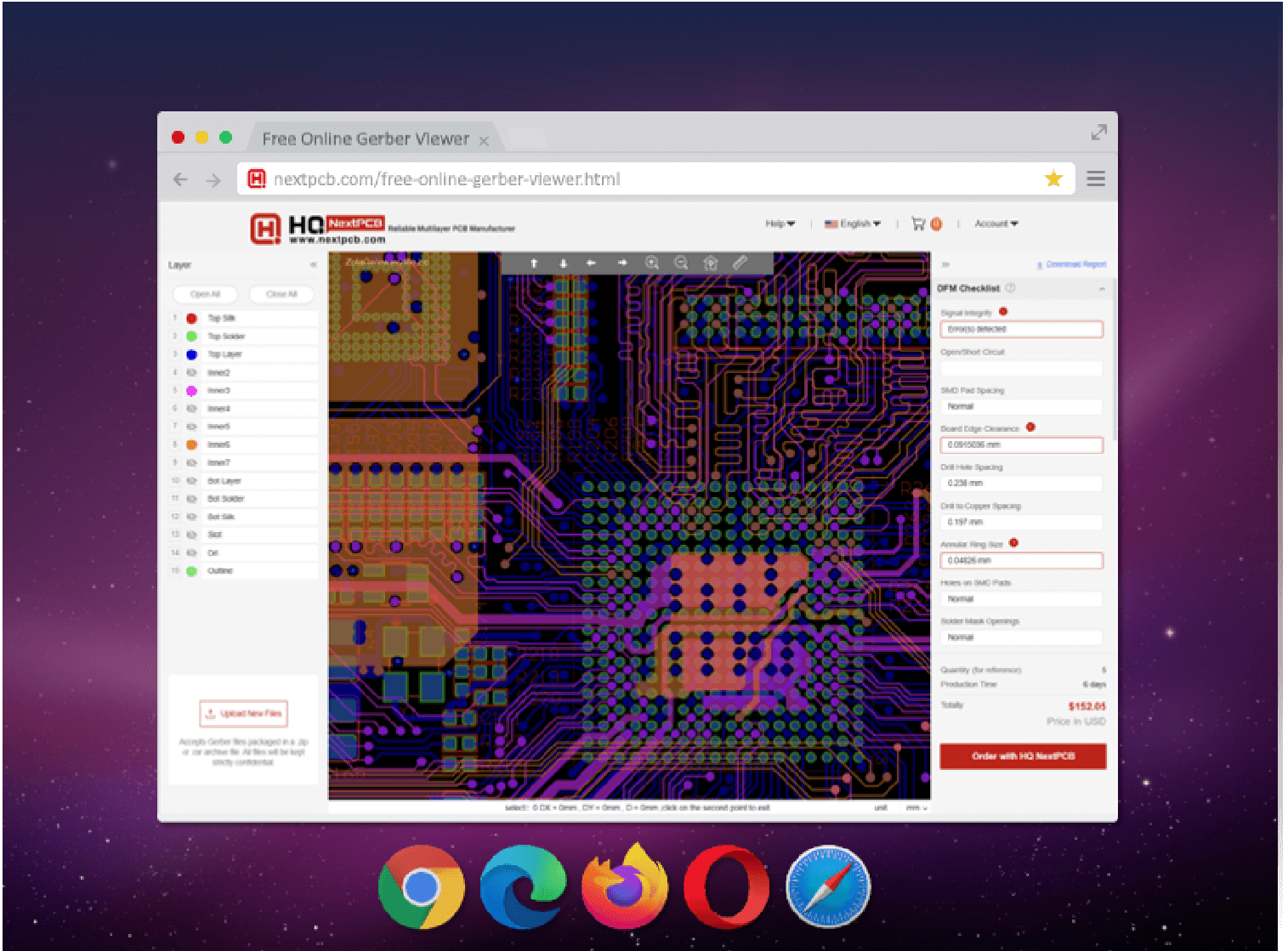

Based on the free desktop version, the cross-platform, online HQDFM makes the easy-to-use Gerber Viewer function and DFM analysis available to everyone, including Mac and Linux users with no download or installation and no sign-up. Anyone can freely upload PCB production files to the online interface and view their design in seconds.

HQDFM supports X2 and RS-274x PCB Gerber formats, Excellon drill files and OBD++ files and works with Google Chrome, Safari, Microsoft Edge, Mozilla Firefox and Opera browsers.


Features:

- Check for over 20 Design for Manufacture issues
- Navigate your PCB layer-by-layer
- Free downloadable DFM Report for more detailed analysis
- Easy, one-click ordering with HQ NextPCB
- Absolutely free, no sign-up or obligation



What does HQDFM check?

Design for Manufacturability

Whether PCB elements are within the capabilities of most manufacturers in the industry, from low-cost quickturn services to advanced services:

- Trace width/spacing
- Drill hole/slot sizes
- Clearances to copper and board outline elements
- Special drill holes
- Solder mask openings and more



Design for Cost

Detect production difficulties that may cause costs or lead times to increase:

- Drill hole fees
- Testing fees
- Surface finish fees
- Small trace widths/spacings
- Special drill hole fees



Design for Reliability

Detect problems that may not affect production but impact the normal operation or lifetime of the boards:

- Shorts/opens
- Missing solder mask dams or openings
- Missing/extra pads, drill holes, annular rings



Try the free HQDFM Gerber Viewer for yourself and discover the difference it can make to your designs.

About NextPCB

HQ NextPCB and HQ Online are the overseas trading brands of Shenzhen Huaqiu (HQ) Electronics Co. Ltd., a reliable multi-layer PCB manufacturer and assembly house. Their capabilities include up to 32 layer boards, blind and buried vias up to HDI 3, custom stack-ups, full turnkey assembly and more via a smart quotation platform with dedicated one-to-one support.

Founded in 2009, NextPCBs passion for fast, reliable and affordable full-featured electronics manufacturing has driven NextPCB to innovate and modernize the electronics manufacturing industry. NextPCB developed and maintains the software HQDFM, a groundbreaking tool for designers to analyze PCB Gerber files and detect design issues. Over 300,000 users around the world already choose NextPCB. Try them for your next design at HQ NextPCB.com and see how they can accelerate your workflow.
