Automated Assembly Line: 15-Micron SMT & High-Reliability PCBA

Part I: The Foundation of the Automated Assembly Line:: The Imperative of Speed, Precision, and Scaled Production

1.1 The Necessity of Automated Manufacturing: Meeting the Stringent Challenges of Industry 4.0

In today's landscape of increasingly miniaturized and highly integrated electronic products, the manufacturing of Printed Circuit Board Assemblies (PCBA) has become a core indicator of high-tech industrial strength. With the explosive demand for high performance and small form factors in areas like 5G communication, Advanced Driver-Assistance Systems (ADAS) and micro-medical sensors, manufacturing processes must reliably handle ultra-miniature components such as 01005 Imperial size (dimensions of only 0.4 mm × 0.2 mm). This relentless pursuit of high density and high reliability drives the manufacturing sector beyond traditional mechanization toward smarter, interconnected automated production lines.

NextPCB, as the oversea brand, is subsidiary of Shenzhen Huaqiu Electronics Co., Ltd.. HQ Intelligent Manufacturing's PCBA factory in Chenzhou, Hunan, is a modern manufacturing hub built upon a deep understanding of this trend. Factory total area is 15000 square meters, and operates 36 fully automated SMT (Surface Mount Technology) production lines. This massive, centralized production layout maximizes efficiency, allowing for a daily capacity exceeding 98 million placement points. Moreover, by scientifically configuring high-volume production lines alongside flexible prototyping lines, NextPCB ensures seamless transition for customers from quick turn prototypes to mass production, all while maintaining high process consistency and product quality stability.

> Recommendd reading: Fundamentals of Surface Mount Technology: What is SMT?

1.2 Technological Core: The New Generation ASM SIPLACE TX High-Speed Placement Machine Cluster

HQ NextPCB Intelligent Manufacturing has strategically invested in over 60 new ASM SIPLACE TX-series high-speed placement machines (formerly Siemens SIPLACE) to deliver on its commitment to extreme speed and precision. The SIPLACE TX platform is globally recognized as an industry benchmark for high-volume, high-density production.

The core advantage of this placement machine cluster lies in its breakthrough throughput and stability. Models such as the ASM SIPLACE TX2i, with a lightweight gantry and rigid frame plus optimized motion control, can achieve placement times as low as 0.05 s per component (~72,000 CPH) under specified conditions. Combined with ASM’s proprietary SIPLACE SpeedStar and MultiStar heads—covering ultra-small passives through larger or odd-form parts—together with the platform’s high-resolution vision and calibration, the line helps maintain industry-leading precision even at high speed.

The "composite structure" design of the platform means the machines can flexibly accommodate different placement heads: for instance, the high-precision SpeedStar head focuses on rapid placement of ultra-small components (like 01005), while the MultiStar head handles larger components (up to 50 mm × 40 mm) or odd-shaped parts. This internal configuration flexibility allows the production line to maintain an efficient balance when processing complex PCBAs with mixed component types (large components, small components, ICs), greatly enhancing the Overall Equipment Effectiveness (OEE).

Part II: Crossing the Ultra-Precision Threshold: 15-Micron Accuracy and Component Miniaturization Assembly

2.1 The Scientific Significance of 15-Micron Placement Accuracy

Traditional standard high-speed placement machine accuracy typically falls within the range of 25 μm to 34 μm. HQ Intelligent Manufacturing's stated and achieved 15 μm (@ 3σ) accuracy signifies that its manufacturing capability has entered the niche of ultra-precision placement, a level usually associated with specialized platforms like the ASM SIPLACE TX micron.

This extreme precision holds irreplaceable value in modern electronics manufacturing. In advanced packaging technologies such as SiP, component spacing can be as tight as 50 μm. For these fine-pitch solder joints, any placement deviation exceeding 15 μm can lead to short circuits or open circuits, directly compromising product function and reliability. Therefore, 15 μm accuracy is a critical prerequisite for reliably assembling next-generation fine-pitch Integrated Circuits (ICs) and Ball Grid Array (BGA) components. The factory's capability indicators show that its minimum BGA/IC pin pitch can be controlled at 0.25 mm 1, which is an extremely difficult, fine-pitch assembly standard in the industry, and must rely on such 15 μm level of ultra-high precision to ensure acceptable yield rates.

2.2 Conquering the Assembly Challenge of 01005 Components

Although tiny, the 01005 component is a core driver for increasing the functional density of modern electronic devices. However, its assembly difficulty is extremely high due to its minimal weight (approximately 0.04 mg), which makes it highly susceptible to factors such as nozzle pressure, airflow, and surface tension during the reflow soldering process. The challenges in assembling 01005 components include:

• Printing Challenge: Solder paste printing must achieve sub-micron level precision; otherwise, inconsistent solder paste volume can easily lead to subsequent defects.
• Placement Force Control: The placement machine must provide extremely fine control over the placement force (e.g., between 0.5 N and 4.5 N) to avoid damaging these fragile components (such as resistor cracking).
• Defect Risk: Even slight misalignment can lead to severe defects like "Tombstoning" or "Bridging" (short circuits).

HQ's new Siemens placement machines are designed precisely to address these challenges. Through advanced vision systems, ultra-high placement accuracy, and flexible placement force adjustment, the production line can reliably and easily handle 01005 components. This capability is particularly critical for sectors demanding the highest reliability, such as complex automotive electronic control units, ADAS modules, and high-end smartphone motherboards.

Part III: Process Optimization and Quality Control: From Printing to X-Ray Inspection

3.1 Pre-Placement Integrity: Printing and 3D Solder Paste Inspection (SPI)

PCBA quality defects often originate from deviations during the solder paste printing stage. Therefore, accurate solder paste management is paramount before high-speed placement. HQ NextPCB Intelligent Manufacturing integrates GKG fully automatic stencil printers, which ensure the accuracy of solder paste deposition—a foundational requirement for handling 01005 components and fine-pitch pads.

Immediately following printing, the production line is equipped with Seitek 2D/3D SPI (Solder Paste Inspection) systems. SPI is a three-dimensional detection method used to measure the volume, height, shape, and position accuracy of solder paste on every pad. This proactive, upstream quality control method detects and corrects printing defects before components are placed, significantly increasing the first-pass yield and serving as a critical component in achieving high-yield mass production.

> Recommend Reading: SPI vs. I2C vs. UART: Differences Between These Communication Interfaces

3.2 Advanced Reflow Soldering: The Inevitable Demand for Nitrogen Atmosphere in High-Reliability

The production line utilizes reflow ovens equipped with 10–12 heating zones for both air and nitrogen reflow. A higher number of heating zones allows for more precise control over the temperature profile, which helps reduce thermal stress on the PCBA during the heating process and ensures uniform heating across complex, mixed-component boards.

The deployment of Nitrogen (N2) Reflow Soldering capability is a clear commitment to high-reliability manufacturing. In a typical air atmosphere, solder and component leads are prone to oxidation at high temperatures, which weakens solder joint strength and electrical performance. Nitrogen, being an inert gas, displaces oxygen in the oven, creating an oxygen-free environment. The resulting advantages include:

• Oxidation Prevention: Greatly reduces oxidation of the solder and pads, which is crucial for lead-free processes that require higher peak temperatures.
• Improved Wetting: The inert atmosphere significantly enhances the solder's wettability, leading to fuller, brighter, and more robust solder joints.
• Void Reduction: Effectively minimizes the void rate in the solder joints of bottom-terminated components like BGAs and QFNs, directly improving the mechanical strength and conductivity of the joints.

Given the strict requirements for solder joint appearance and structural integrity in high-reliability sectors such as automotive and medical devices, nitrogen reflow soldering is a necessary process requirement for meeting IATF 16949 and ISO 13485 standards.

3.3 Post-Solder Verification: AOI and X-Ray Inspection's Combined Assurance

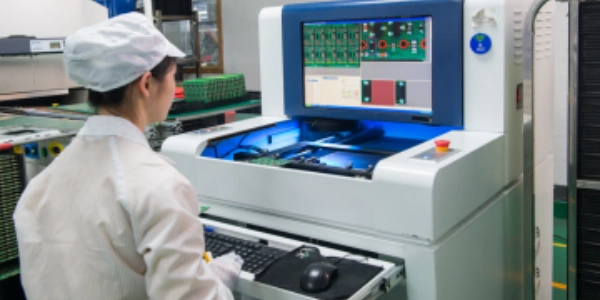

After reflow soldering, the PCBA enters the final automated quality inspection phase. The production line uses JUTZE AOI (Automated Optical Inspection) detectors. The AOI system utilizes high-speed cameras and advanced image processing to quickly compare solder joints, component position, and component type against standards (usually IPC-A-610), efficiently identifying surface defects such as component misalignment, polarity errors, insufficient solder, and short circuits.

However, for complex packages like BGA, CSP, and QFN, where solder joints are hidden beneath the component and cannot be visually inspected, 2D/3D X-Ray Inspection (AXI) is indispensable. The X-ray system penetrates the component to clearly check the connectivity of BGA solder balls, looking for bridging or voids. For the smallest BGA solder joints, such as those with 0.25 mm pitch 1, X-ray inspection is a key method for ensuring reliability and, specifically, controlling voiding.

Part IV: Systematic Quality Assurance: MES Management and Industry Certification System

4.1 MES: The Central Nervous System and Core Process Control of the Smart Factory

In managing a colossal manufacturing system that processes over 98 million placement points daily and controls 36 production lines, ensuring quality consistency and traceability is the biggest challenge. Our manufacturing addresses this by fully implementing the MES (Manufacturing Execution System) management system across its entire process, successfully transforming scaled production into controlled, traceable, and intelligent manufacturing.

MES as a digital platform plays a critical role in SMT production:

• Real-Time Monitoring and Data-Driven Decisions: MES continuously collects and analyzes real-time data on equipment status, capacity, and yield rates, providing the basis for rapid decision-making and optimizing production planning.
• Process Standardization and Error Prevention: The system automatically pushes work orders and process parameters (Recipes) to equipment like placement and printing machines. Before production begins, MES validates the accuracy of machine setups (e.g., material reels, program versions), thereby minimizing human error and process variation.
• Comprehensive Traceability: This is one of MES's most crucial values and a mandatory requirement for high-reliability certifications (like IATF 16949 and ISO 13485). MES records the material batch, placement time, machine used, and all associated SPI, AOI, and X-Ray inspection data. This complete "material genealogy" is the foundation for managing recalls and failure analysis in the automotive and medical sectors.

4.2 Stringent Certification System: Anchoring to the Highest Global Quality Standards

HQ Intelligent Manufacturing's rigorous certification system reflects its strategic focus on high-end global markets and its commitment to quality:

4.2.1 IATF 16949: The Passport for Automotive Electronics

IATF 16949 is the globally recognized quality management system standard for the automotive industry, focusing on process stability and defect prevention within the supply chain. Achieving this certification means HQ NextPCB's manufacturing process meets the stringent standards required for safety-critical automotive electronic components (such as ADAS systems, power battery management units). The factory's 15 μm placement accuracy provides the hardware guarantee necessary to meet the increasing circuit density requirements of automotive modules.

4.2.2 ISO 13485: The Commitment to Medical Device Reliability

ISO 13485 is the international quality management system standard specific to medical devices. This certification requires manufacturers to establish a quality system focused on risk management, design control, and full product lifecycle traceability. Medical PCBAs typically must adhere to the IPC-A-610 Class III standard (the highest reliability class). HQ NextPCB production under the ISO 13485 system ensures the highest level of safety and fault tolerance when manufacturing miniature, high-density medical devices like portable diagnostic equipment or life support systems.

4.2.3 Quality and Environmental Foundation

The factory also holds ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) system certifications, establishing a solid management foundation and environmental standard for all production activities.

Part V: Conclusion: Competitive Advantages Brought by Intelligent Manufacturing

HQ Intelligent Manufacturing's automated assembly line is not merely an aggregation of equipment, but a highly integrated, intelligent manufacturing ecosystem. The core advantage lies in its ability to seamlessly combine massive production scale (daily capacity 98 million points) with extreme placement precision (15 μm).

This synergy creates technological spillover effects that elevate HQ NextPCB's manufacturing capability beyond that of typical electronic manufacturing service providers:

• Enabling Ultra-Precision Packaging: The 15 μm accuracy allows the factory to reliably undertake cutting-edge products utilizing SiP and 0.25 mm pitch BGAs, securing a technological high ground in the manufacturing of next-generation high-density computing and communication modules.
• Implanting the High-Reliability DNA: Holding both IATF 16949 and ISO 13485 certifications means the factory has embedded the most stringent process stability and risk management culture into every stage of production. This high standard of process discipline not only serves automotive and medical clients but also guarantees all customers receive a level of reliability that exceeds typical industry norms.
• MES for Trustworthy Scaling: The MES system is the only way to ensure consistent quality and efficiency across 36 production lines. It provides complete traceability and real-time control capability, minimizing the risks associated with high-throughput production.

In summary, HQ Intelligent Manufacturing has established a future-proof automated assembly line, leveraging its new Siemens/ASM SMT equipment cluster, advanced nitrogen reflow process, and MES-driven intelligent management system. This system not only satisfies current demands for speed and efficiency but, through ultra-high precision and a rigorous certification framework, provides a solid manufacturing foundation for the successful launch of high-reliability, high-density electronic products for global customers.

Choosing HQ NextPCB is choosing an accredited, technologically advanced, and zero-defect focused intelligent manufacturing partner.
