3D Printer Clog Detector V2 (Thanks For Elite Worm Do This Wonderful Project)

Posted:06:07 PM June 23, 2020 writer: James

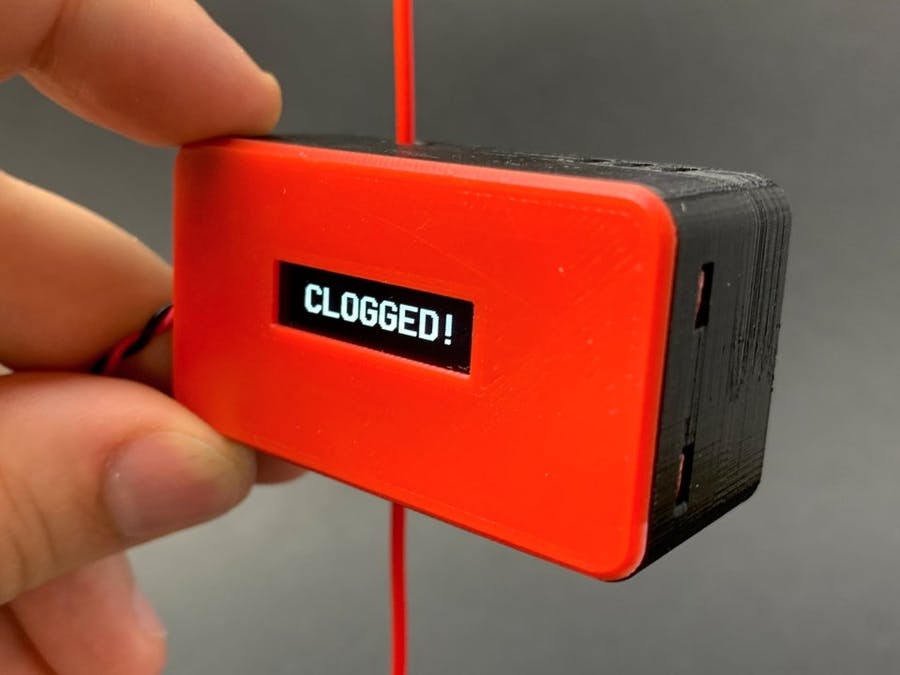

This is the second version of a device I designed to alert me in the unfortunate event the nozzle clogs. It communicates with the printer!
Thanks for Elite Worm do this wonderful project.
Follow me to saw how to make it!


Detector-V2


Download the Gerber file:

https://www.nextpcb.com/ueditor/php/upload/file/20200623/1592906396322929.zip


Story

This is version 2 of a small device that allows you to detect if the nozzle of your 3D printer clogs while it's running. The building process is way easier now since it is based on a PCB instead of using wires. In addition to that, this version has a cool new functionality: It can communicate with your printer. That way you can automatically pause or cancel the print if a clog occurs. Jamming does not happen very often but when you are printing large parts it can really save you a lot of time to be alerted as quick as possible. It is attached to the top of the extruder using double-side tape and it is connected to the 12 V DC rail of the hotend fan. I printed mine in ABS to prevent deformation of some parts due to heat since my Prusa is enclosed.



Custom parts and enclosures

3D Files



Schematics

Schematic



3D printer clog detector v2 schematic
