The Engineer's Guide to RoHS Compliant PCB Manufacturing: Modern Standards & Technical Realities

Understanding RoHS in Today's Regulatory Landscape

RoHS (Restriction of Hazardous Substances) is a comprehensive framework designed to minimize the ecological footprint of electronic waste. The current standard, built upon the RoHS 3 (EU Directive 2015/863) foundations, restricts ten specific substances, ensuring that electronic and electrical equipment (EEE) is safer for both end-users and the environment during disposal.

For modern PCB fabrication and turnkey PCB sourcing, the primary focus remains on the "Big 6" restrictions, with particular emphasis on the total elimination of lead (Pb) in the soldering process:

• Lead (Pb): Restricted to < 1000 ppm.
• Mercury (Hg): Restricted to < 1000 ppm.
• Cadmium (Cd): Restricted to < 100 ppm.
• Hexavalent Chromium (Cr VI): Restricted to < 1000 ppm.
• PBBs & PBDEs: Restricted flame retardants to < 1000 ppm.

In the current manufacturing environment, we also pay close attention to the four phthalates added under the latest amendments, ensuring that every part of the PCB assembly—from the laminate to the protective coatings—is fully compliant.

Material Selection: Thermal Stability and Substrate Integrity

Adopting RoHS standards is more than a chemical change; it is a physical challenge. Lead-free solder alloys (typically SAC305) require reflow temperatures significantly higher than traditional tin-lead options, fundamentally altering how we select PCB materials.

The Thermal Challenge

Traditional Sn63/Pb37 solder has a eutectic melting point of 183°C. Modern lead-free alloys, however, require peak reflow temperatures between 245°C and 260°C. This increased thermal load requires substrates with superior properties:

• Decomposition Temperature (Td): For high-reliability lead-free processes, NextPCB recommends materials with Td ≥ 340°C. This ensures the resin system maintains its integrity through multiple heat cycles.
• Glass Transition Temperature (Tg): High-Tg (170°C+) materials are increasingly the standard for multilayer designs to manage the stress of higher processing temperatures and prevent Z-axis expansion issues.
• CTE Control: Managing the Coefficient of Thermal Expansion is vital to prevent plated through-hole (PTH) fatigue, especially in quick turn PCB projects where rapid prototyping may involve varied thermal profiles.

Modern RoHS Surface Finishes: Selecting the Optimal Interface

The surface finish is the critical barrier between your copper traces and the external environment. With traditional leaded HASL largely obsolete, several RoHS-compliant alternatives have become industry standards. Choosing the right one is essential for low cost PCB efficiency and signal integrity.

Overcoming Technical Challenges in Lead-Free Assembly

The transition to lead-free materials introduces specific failure modes that require advanced PCBA process management. At NextPCB, our assembly lines use precision thermal profiling to mitigate these risks.

1. BGA Integrity and Head-in-Pillow (HiP)

Lead-free BGAs are sensitive to the "Head-in-Pillow" defect, where the solder ball and paste fail to coalesce properly due to oxidation or insufficient thermal energy. Our inspection protocols include 3D X-ray analysis to ensure internal joint integrity for every turnkey PCB project.

2. Preventing Tin Whiskers

The absence of lead increases the risk of conductive tin whiskers. In mission-critical sectors such as aerospace or automotive, we employ specific plating chemistries and conformal coating options to neutralize this risk.

3. Moisture Sensitivity and Outgassing

Higher reflow temperatures exacerbate moisture trapped within components. We maintain strict MSL (Moisture Sensitivity Level) controls and pre-bake cycles to prevent the "popcorn effect" and internal delamination during assembly.

Economic Realities: Balancing Compliance and Manufacturing Costs

While RoHS manufacturing was once considered a "premium" service, it is now the standard. The price difference between leaded and lead-free production has stabilized. Modern cost drivers primarily include:

• Alloy Costs: Silver-bearing solders are inherently more expensive than lead-based counterparts.
• Substrate Grades: Transitioning to High-Tg or High-Td materials for thermal resistance.
• Verification: The administrative and laboratory costs associated with component compliance verification.

Strategic selection of finishes like Lead-Free HASL can still achieve a low cost PCB profile while maintaining 100% compliance with international safety standards.

How NextPCB Secures Your Global Compliance Pathway

NextPCB manages the entire lifecycle of your turnkey PCB project, ensuring that every resistor, capacitor, and substrate meets modern RoHS requirements.

• Integrated BOM Scrubbing: Our procurement team verifies the RoHS status of every component in your Bill of Materials before purchasing begins.
• Strict Process Segregation: We maintain separate production environments to prevent cross-contamination between RoHS and specialized leaded (exempt) projects.
• Advanced Verification: Utilizing in-house XRF testing and material certifications to provide absolute transparency.
• Flexible Production: Whether you need a single quick turn PCB prototype or a high-volume production run, our quality standards remain uncompromised.

Frequently Asked Questions (FAQ)

1. Is RoHS compliance required for all electronic products?

While most consumer and industrial electronics must comply, certain sectors like aerospace and specific military applications may have exemptions due to the unique reliability requirements of leaded solder. However, the vast majority of modern designs should be RoHS-compliant.

2. What happens if I use leaded solder on a lead-free board?

This is highly discouraged. The metallurgical bond between leaded solder and a lead-free surface finish (like ENIG or Lead-Free HASL) can be brittle and prone to premature failure, especially under thermal cycling.

3. Does NextPCB provide certificates of compliance?

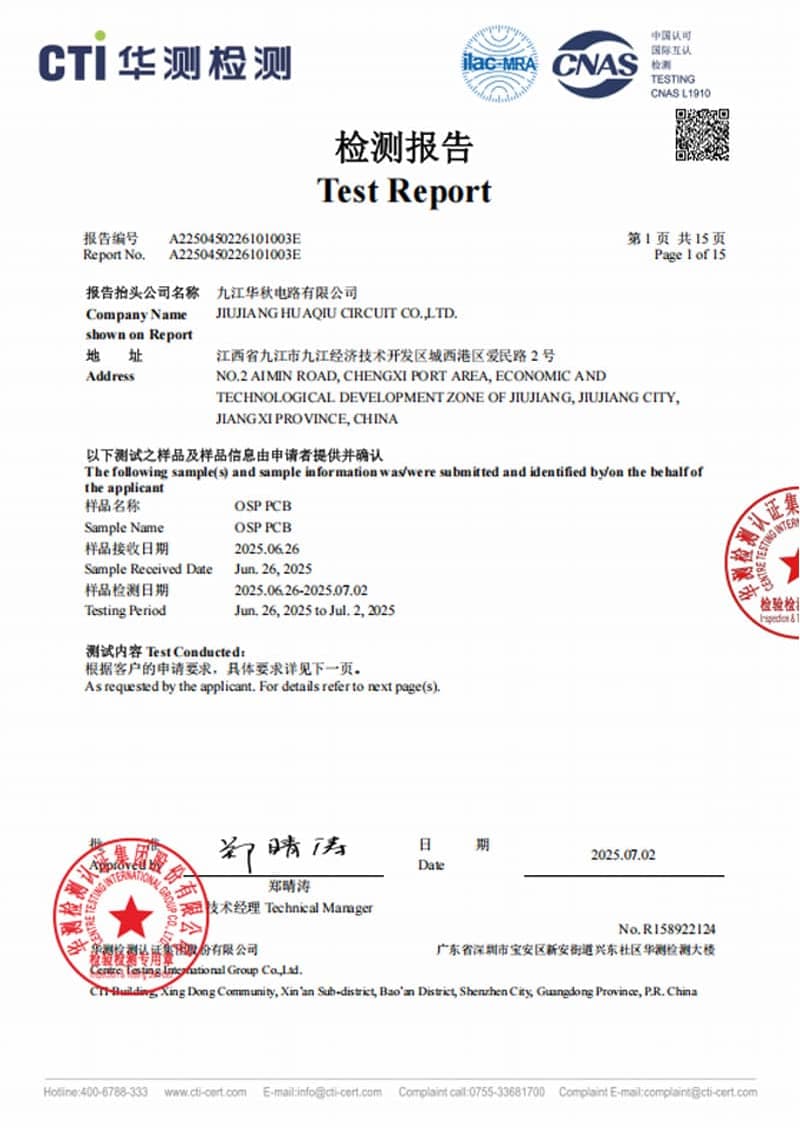

Yes. Every shipment can be accompanied by a formal Certificate of Compliance (CoC) verifying that the materials and processes used meet current RoHS standards.

4. How do I know if my components are RoHS compliant?

Our automated quoting and BOM management system cross-references manufacturer part numbers with global compliance databases, flagging any non-compliant parts for your review during the design phase.

Start Your Compliant Manufacturing Journey

Navigating the technical landscape of modern electronics requires a partner who understands the fine details of material science and regulatory standards. From prototype to production, NextPCB is here to help.
