What is PCB OSP?

OSP (Organic Solderability Preservative) is an anti-tarnish coating applied directly to bare copper. It selectively bonds to the copper surface and forms a very thin protective film, so the pads stay clean and solderable until the components are mounted. During soldering, the flux removes the film and the solder wets the clean copper, forming a copper-to-solder joint.

OSP is sometimes searched for as "OSP plating" or "OSP coating". It is not a plated metal layer. It is a chemical coating that adsorbs onto copper and does not add a metal layer to the pad.

OSP chemistry belongs to the azole family, which includes compounds such as benzotriazoles, benzimidazoles and imidazoles. These molecules bond to the copper surface by coordination and adsorption and build up a thin organic film. The film is typically only a few tenths of a micron thick, roughly 0.2 to 0.5 µm depending on the product and process.

Types of OSP

Older OSP formulations were designed for tin-lead soldering. Modern high-temperature OSP formulations are designed to survive the higher peak temperatures of lead-free reflow and can withstand more than one reflow pass. If your assembly uses lead-free solder or double-sided reflow, tell your manufacturer so that a suitable OSP type is used.

Why a PCB Needs a Surface Finish

Copper is the conductor on a printed circuit board, but bare copper is chemically reactive. Exposed to air and moisture it oxidizes quickly, and the oxide layer makes it hard for solder to wet the pad, which leads to poor joints and reduced reliability.

A surface finish solves this by protecting the copper until assembly and keeping the pads solderable. OSP is one of several options; for a complete overview of all of them, see our PCB surface finish guide.

Advantages of OSP

• Low cost: OSP is one of the most economical finishes, which makes it popular for high-volume consumer products.
• Flat pads: The film is so thin that pads stay flat and coplanar, which is good for fine-pitch SMD and BGA placement. HASL cannot match this flatness.
• Good solderability: Fresh OSP gives good wetting, and the joint forms directly on copper.
• Simple, low-temperature process: OSP is applied by a wet chemical process without exposing the board to molten solder, so there is no thermal shock from the finishing step.
• Lead-free and environmentally friendly: OSP is water-based and contains no lead, so it is RoHS compatible.
• Suitable for SMT assembly: OSP works well for single-sided and, with limits, double-sided SMT assembly. See the double-sided note below.

Disadvantages of OSP

1. Short shelf life: OSP boards are generally best used within a few months of manufacture. A figure of about six months is commonly cited, and some high-temperature OSP products are rated longer. Follow your manufacturer's storage standard.
2. Limited reflow cycles: Each reflow pass degrades the film. Boards that need several reflow passes, or reflow followed by wave or selective soldering, may be better served by ENIG or HASL.
3. Hard to inspect: The film is clear and extremely thin, so it cannot be judged by eye. Thickness is normally checked in the lab, for example by dissolving the film and measuring it with a UV-Vis spectrophotometer, not by simple visual or X-ray checks.
4. Sensitive to handling: Fingerprints, scratches and contamination can damage the film and cause poor wetting, so handle boards by the edges and in clean conditions.
5. Not for contact surfaces or wire bonding: OSP is not suitable for edge connectors, keypads, switch contacts or wire bonding. It can also make in-circuit test probing less reliable, so check with your manufacturer if your design depends on test points.
6. Limited protection after assembly: Copper that is not soldered, such as unused pads and test points, is left with only the thin OSP film.
7. Rework is difficult: Removing OSP means stripping the old film with chemistry that can attack the copper, so boards with a damaged or expired OSP layer are best sent back to the manufacturer for evaluation instead of reworked in-house.

OSP on double-sided and through-hole boards

OSP is widely used on double-sided SMT boards, but the first reflow pass ages the film on the second side. Use a high-temperature OSP and keep the number of thermal cycles low. The same applies to single-sided boards with later wave or selective soldering. For boards that need multiple soldering passes, consider ENIG or lead-free HASL instead.

OSP Process Step by Step

OSP is applied late in PCB fabrication, after the solder mask and legend. The typical process sequence is:

1. Cleaning
2. Micro-etching
3. Acid rinse
4. OSP application
5. Deionized water rinse
6. Drying

1. Cleaning

The copper is cleaned to remove oil, fingerprints and oxide film. Any contamination left on the copper stops the OSP from bonding evenly, so cleaning directly affects solderability and the uniformity of the film.

2. Micro-Etching

A micro-etch removes a very thin layer of copper and leaves a clean, slightly roughened surface. This improves the bond between the copper and the OSP film. The etch amount must be controlled, because it affects film thickness and later solderability. A typical micro-etch rate is around 1.0 to 1.5 µm per minute.

3. Acid Rinse

A mild acid rinse, often sulfuric acid, removes remaining oxide and residues from the micro-etch before the board enters the OSP bath.

4. OSP Application

The OSP solution is applied by immersion or spray under controlled temperature, concentration and dwell time. These parameters set the film thickness. Too thin and the copper is not protected; too thick and the film is harder for flux to remove during soldering.

5. Deionized Water Rinse

The board is rinsed with deionized water to remove ionic residues that could cause oxidation or discoloration of the copper after reflow.

6. Drying

The board is dried thoroughly, then inspected and packed. Good packaging matters as much as the process, because the film is the only thing protecting the copper.

Discoloration After Reflow

OSP boards can show copper discoloration after soldering. Common causes are film thickness outside the specified range, too much or too little micro-etching, repeated or prolonged heating, and contamination. A visual check usually shows which of two situations you have:

1. Flux removes the oxide during soldering: The pad solders normally and there is no impact on joint quality, so no action is needed.
2. Flux cannot remove the oxide: Wetting suffers and joints may be poor. The fix is at the source: keep the OSP thickness within its specified range, control the micro-etch amount, and remove contamination before coating.

Storage and Shelf Life of OSP Boards

The OSP film is thin and exposed, so storage conditions directly affect how long the boards stay solderable. Good practice is:

• Vacuum or moisture-barrier packaging: Keep boards sealed until just before assembly. A desiccant and humidity indicator card help.
• Cool, dry storage: Store in a controlled environment away from direct sunlight, heat and humidity.
• Minimal handling: Avoid touching pads, and do not stack boards in a way that rubs the surface.
• Assemble soon after opening: Once the package is open, the film starts to age faster. Use the boards promptly.
• Avoid unnecessary baking: Excess heat can degrade the film, so bake only if your manufacturer's guidance says so.

If boards have been stored longer than the manufacturer's rated shelf life, ask the manufacturer to evaluate them or re-treat them before assembly instead of assuming they are still solderable.

OSP vs HASL vs ENIG

For a closer comparison of the other two finishes, read our HASL vs ENIG guide.

Factors to consider when choosing OSP

• Time to assembly: If boards will be assembled within a few weeks of delivery, OSP is a good fit. If they will sit in storage, choose a more durable finish.
• Number of soldering passes: OSP tolerates a limited number of reflow cycles. Count the thermal passes your assembly needs.
• Pad pitch: OSP gives flat pads for fine-pitch SMD and BGA, which is an advantage over HASL.
• Contacts, test points and bonding: If the board has edge connectors, contact pads or wire bonds, OSP is not the right finish.
• Budget and volume: OSP saves the most at high volume where cost is the main constraint.

When Should You Use OSP?

OSP is a good choice when you need a low-cost, RoHS-compatible finish for SMT boards, you want flat pads for fine-pitch components, and the boards will be assembled soon after fabrication with a limited number of soldering passes. It is common in consumer electronics, computing and other high-volume products.

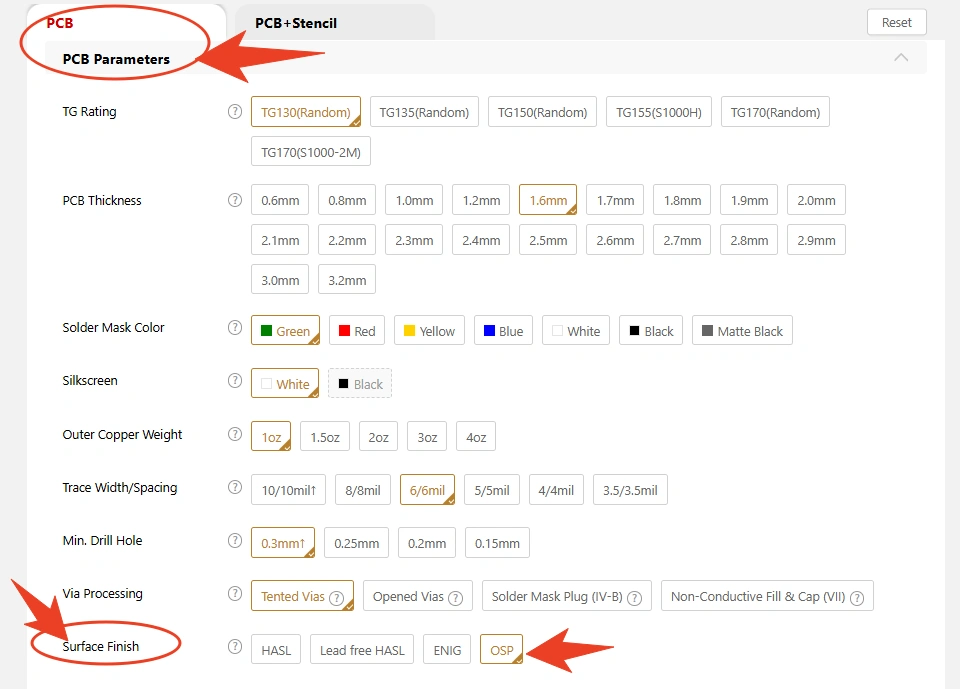

Choose another finish if the boards need a long shelf life, many reflow cycles, contact surfaces or wire bonding. OSP is selectable on NextPCB's standard PCB quote. To compare it with the other finishes we offer, see the available surface finishes.

FAQ

What does OSP stand for in PCB?

OSP stands for Organic Solderability Preservative. It is a thin organic film applied to bare copper pads to prevent oxidation until the board is soldered.

What is OSP surface finish?

OSP surface finish is a water-based, lead-free organic coating that bonds to copper pads and keeps them solderable. It is not a plated metal layer.

What is the shelf life of an OSP PCB?

OSP has a shorter shelf life than HASL or ENIG. About six months is commonly cited, and some high-temperature OSP products are rated longer. Actual shelf life depends on packaging and storage conditions, so follow your manufacturer's storage standard.

Is OSP harmful to humans?

OSP is a water-based, lead-free finish and is RoHS compatible. Finished boards can be handled normally. As with any process chemistry, the OSP chemicals themselves are handled by the manufacturer under their safety data sheets.

Can OSP be used on double-sided PCBs?

Yes, OSP is widely used on double-sided SMT boards. Each reflow pass ages the film, so use a high-temperature OSP and keep the number of soldering passes low. If you need several passes, consider ENIG or lead-free HASL.

Is OSP suitable for through-hole boards?

OSP can be used on boards with through-hole parts, but it ages with each heat cycle. If the board goes through reflow followed by wave or selective soldering, check with your manufacturer, and consider HASL or ENIG for the most reliable results.

How is OSP thickness measured?

Because the film is clear and extremely thin, thickness is not checked by eye. It is normally measured in the lab, for example by dissolving the film and analyzing it with a UV-Vis spectrophotometer.

Why does an OSP board change color after reflow?

Discoloration can come from film thickness outside the specified range, uneven micro-etching, repeated heating or contamination. If the flux removes the oxide and solderability is unaffected, no action is needed. If wetting is poor, the OSP process needs to be corrected at the source.

Is OSP better than HASL?

OSP gives flatter pads and costs less, which suits fine-pitch SMT. HASL has a longer shelf life, tolerates more reflow passes and suits through-hole boards. The better choice depends on your design and assembly plan.

Summary

OSP is a low-cost, lead-free finish that protects copper with an extremely thin organic film and keeps pads flat for SMT assembly. Its limits are a shorter shelf life, a limited number of reflow cycles, sensitivity to handling, and no support for contacts or wire bonding. Plan your assembly timing and soldering passes before choosing it, and store the boards carefully.
