You've received your boards and something's off — a reference designator is missing, a polarity mark isn't printed, or the whole legend layer is just gone. Before you assume the board is defective, it's worth understanding what silkscreen actually does, why it sometimes goes missing, and when it's actually a problem worth escalating.

What Is PCB Silkscreen, and What Does It Do?

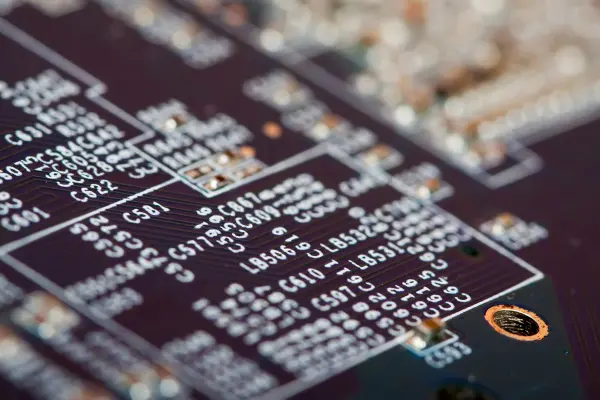

PCB silkscreen (also called the legend or overlay layer) is the printed layer of text and symbols on the top and/or bottom of a board — reference designators (R12, C8, U3), polarity marks for diodes and capacitors, pin-1 indicators, connector labels, test point names, warning symbols, logos, and revision or date codes. It doesn't carry current and isn't part of the board's electrical circuit — its job is to make the board readable to the humans (and sometimes machines) that assemble, test, inspect, and repair it.

Is Missing Silkscreen an Electrical Defect?

Not by itself. A bare board with incomplete or missing silkscreen can still conduct electricity perfectly normally — the copper traces, solder mask, plating, and surface finish are what determine electrical performance, and silkscreen isn't part of that. That said, "not an electrical defect" doesn't mean "not a problem." Missing silkscreen becomes a real issue the moment it affects assembly, inspection, testing, field service, or regulatory compliance — which, in practice, is fairly often.

Common Causes of Missing Silkscreen

Missing or incomplete silkscreen usually traces back to one of a few points in the process:

• It never made it into the design files. If the silkscreen layer wasn't included, or was accidentally left off, when Gerber files were exported from the CAD tool, there's nothing for the fabricator to print.
• CAM processing removed it. Fabricators commonly strip silkscreen that overlaps exposed copper, solder mask openings, or pads, since ink on a solderable surface can interfere with soldering. If your silkscreen artwork runs over a pad or via, it's likely to be clipped or removed during CAM review, whether or not the fabricator flags it back to you.
• The feature was too small to resolve. Text set below the printer's minimum readable size (both minimum line width and font height) can print poorly, incompletely, or not at all.
• It's hidden under a component. Sometimes the designator is printed exactly where the design intended, but a component placed on top of it hides it after assembly — this looks like "missing" silkscreen but is really a placement/labeling coordination issue.
• Printing or adhesion issues. Less commonly, ink adhesion problems during the actual silkscreen printing step can cause markings to wear off or fail to cure properly.

Where Missing Silkscreen Actually Causes Problems

Whether missing silkscreen matters depends heavily on your use case:

• Assembly: Operators normally match components to positions using reference designators. Without them, assembly relies entirely on the BOM, pick-and-place file, and assembly drawing — workable, but slower and more error-prone, especially in high-mix, low-volume production.
• Polarity-sensitive components: Missing polarity marks on diodes, electrolytic capacitors, LEDs, and connectors raise the risk of a reversed component making it through assembly undetected.
• Test and debug: Missing test point labels slow down functional testing and field debugging, since technicians can't quickly identify what a given point should be reading.
• Traceability and compliance: If your product requires revision codes, date codes, UL marks, or serial/QR codes as part of its documentation trail, missing silkscreen in those specific areas can be a real compliance gap, not just a cosmetic one.
• Field service and repair: Technicians repairing a board months or years later rely on legible labels far more than the original design team ever did.

In short: for a one-off prototype you're assembling yourself, missing silkscreen is often a non-issue. For OEM production, regulated products, or anything that will be serviced by someone other than the original designer, it's worth taking seriously.

How to Check for Missing Silkscreen Before Fabrication

The cheapest time to catch a silkscreen problem is before the board is ever fabricated — once boards are built, fixing it means a re-spin. Before submitting your order:

1. Open your exported Gerber files (not just your CAD project) in a Gerber viewer, and check the legend layer specifically, since CAM-level clipping only shows up in the exported output, not your design software.
2. Zoom in on any silkscreen that sits near pads, vias, or solder mask openings — these are the areas most likely to get clipped during fabrication.
3. Confirm any regulatory marks, QR/serial codes, or revision text are present and legible at the size they'll actually print.

You can check this yourself with our free online Gerber viewer — it renders your legend layer exactly as it will be fabricated, so you can catch clipping or missing artwork before you order.

How to Prevent Missing Silkscreen

• Keep silkscreen clear of pads and vias. Give text and markings adequate clearance from any exposed copper or solder mask opening, rather than relying on it to survive fabrication over a pad.
• Respect minimum text size. Check your fabricator's minimum silkscreen line width and font height, and avoid setting labels smaller than that in your CAD tool.
• Run a DFM check before ordering. A DFM review can flag silkscreen-over-copper conflicts and undersized text automatically, rather than leaving it to be caught (or not) during CAM review at the fab. Our HQDFM tool checks this alongside your other manufacturability rules.
• Double-check components against placement. If a designator is likely to end up under a tall or wide component, consider whether it needs to be repositioned so it stays visible after assembly.

FAQ

Does missing silkscreen mean my PCB is defective?

Not necessarily. Silkscreen isn't part of the electrical circuit, so a board can function perfectly with incomplete or missing legend markings. It becomes a practical problem when it affects assembly, testing, traceability, or compliance requirements — not because the board itself is electrically faulty.

Why did my fabricator remove part of my silkscreen?

Most commonly because it overlapped a pad, via, or solder mask opening. Fabricators typically clip silkscreen ink away from exposed copper to avoid interfering with soldering, whether or not that's called out back to you during CAM review.

Can I fix missing silkscreen after the board is fabricated?

Not reliably. Silkscreen is applied during fabrication as one of the earlier steps, so a missing legend on a finished board generally can't be added afterward. The fix is to catch it at the Gerber-review stage before ordering, not after the boards arrive.

How do I check my silkscreen layer before ordering?

Open your exported Gerber files (not your CAD project file) in a Gerber viewer and inspect the legend layer directly, paying particular attention to areas near pads and vias. This shows you what will actually be manufactured, which can differ from what your design software displays.
