HDI PCB Design Guidelines for BGA Fanout & Stackup Planning

Introduction

In HDI PCB design, BGA fanout and stackup planning directly affect routing success, signal integrity and manufacturing yield. As BGA pitch becomes finer and pin counts increase, traditional multilayer PCB approaches often fall short, leading to routing congestion, unstable power delivery, and costly redesigns when HDI decisions are made too late.

This article focuses on practical HDI PCB design guidelines for BGA fanout and stackup selection. By making informed decisions early and aligning design choices with manufacturing capabilities, engineers can avoid common layout issues and achieve reliable, production-ready HDI BGA designs.

1. Table of Contents
2. Real Challenges of BGA Routing in Modern Designs
3. HDI Fundamentals for Designers
4. BGA Placement Rules Before Fanout
5. Practical BGA Fanout Strategies in HDI PCBs
6. Stackup Design for HDI BGA Boards
7. Signal Integrity & Power Integrity Under BGAs
8. Manufacturing & DFM Guidelines for HDI BGA Designs
9. Common HDI BGA Design Mistakes
10. Practical Engineer Checklist for HDI BGA Designs
11. When HDI Is Worth the Cost
12. Conclusion

1. Practical DFM-focused guidelines for designing reliable HDI BGA PCBs,
2. covering fanout strategy, stackup validation, and manufacturability checks

Real Challenges of BGA Routing in Modern Designs

Let's understand some key challenges that engineers face during bga routing in modern designs:

Shrinking BGA Pitch

• Ball pitch below 0.8 mm leaves little to no space for traditional dog-bone fanout.
• Inner BGA rows become difficult or impossible to escape using through-hole vias.

Severe Routing Congestion Under the BGA

• Limited breakout channels force longer routes and extra layer transitions.
• Poor early fanout planning often leads to late stackup changes or added layers.

Power and Ground Delivery Constraints

• Dense clusters of power pins require very short, low-inductance paths.
• Inadequate breakout planning can break return paths and introduce noise.
• Common symptoms include voltage droop, random resets, and unstable operation.

Signal Integrity Risks

• Long escape paths and frequent layer transitions create impedance discontinuities.
• Broken reference planes increase crosstalk and EMI, especially at high speeds.
• These issues often appear only during system testing, not layout review.

Limits of Traditional Multilayer PCBs

• Through-hole vias consume valuable routing space under dense BGAs.
• Simply adding layers increases cost without solving escape congestion.
• Fanout and stackup misalignment remains the root cause.

HDI Fundamentals for Designers (What Actually Matters)

HDI is adopted in BGA designs when traditional multilayer PCBs can no longer route dense or fine-pitch packages efficiently. Microvias allow signals to escape directly from BGA pads, reducing routing congestion, shortening signal paths, and improving signal integrity. Blind and buried vias further help free routing space and support compact board layouts.

At the same time, HDI introduces manufacturing and cost constraints. Additional via structures increase lamination steps, process sensitivity, and yield risk if overused. HDI does not remove design limits—it shifts them to manufacturing capability. The most successful HDI designs use these features selectively, applying HDI only where routing density or performance truly demands it.

BGA Placement Rules Before Fanout

Correct BGA placement is critical in HDI designs—poor placement increases layers and routing complexity, while proper placement simplifies fanout and improves manufacturability.

Rule 1: Place the Primary BGA First and Near the Board Center

Placing the primary BGA near the board center provides balanced routing access and simplifies HDI fanout, while edge placement often leads to routing congestion and higher layer count

The main BGA—such as a processor, FPGA, or SoC—should be placed early and positioned near the center of the board whenever possible. Central placement provides equal routing access on all sides, reduces congestion, and minimizes trace length variation. Placing a large BGA too close to board edges often limits escape routing options and increases layer count.

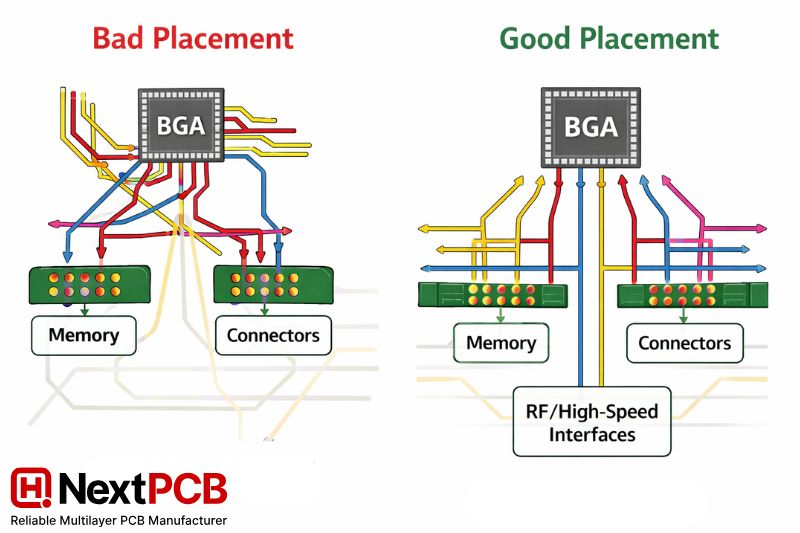

Rule 2: Consider Routing Direction and Escape Channels

Aligning BGA escape routing with memory, connectors, and high-speed interfaces reduces crossover, minimizes layer transitions, and improves signal integrity

Before locking placement, designers should visualize how signals will escape from each side of the BGA. Adequate clearance must exist around the package for via placement and trace breakout. Aligning BGAs with the dominant routing directions of memory, connectors, or high-speed interfaces reduces crossover and unnecessary layer transitions.

Rule 3: Maintain Clearance from Noisy or Mechanical Constraints

Keeping BGAs away from mechanical features and noisy power circuits improves routing flexibility and reduces signal integrity and assembly risks

BGAs should be kept clear of mechanical features such as mounting holes, stiffeners, and enclosure edges. In addition, sensitive BGAs—especially those with high-speed or RF interfaces—should be separated from switching regulators, clocks, and high-current power paths to avoid noise coupling and routing conflicts.

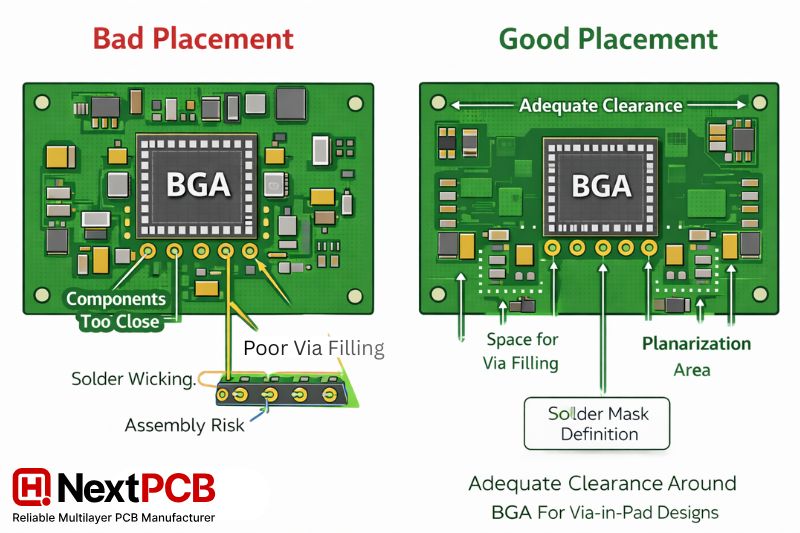

Rule 4: Account for Assembly and Via-in-Pad Requirements

Adequate clearance around BGAs is critical for via-in-pad designs to prevent solder wicking and ensure reliable BGA assembly

If via-in-pad fanout is expected, placement must allow sufficient space for proper via filling and solder mask definition. Tight placement without considering assembly clearances can lead to solder wicking, poor joint quality, or reflow defects.

Rule 5: Lock Placement Before Stackup and Fanout Decisions

Finalizing BGA placement early prevents unnecessary HDI layers, reduces redesign cycles, and results in cleaner fanout routing

Changing BGA placement after stackup or fanout planning often leads to rework, added layers, or yield issues. Placement should be finalized before committing to HDI stackups or via strategies to ensure alignment between layout intent and manufacturing capability.

Practical BGA Fanout Strategies in HDI PCBs

BGA fanout is where HDI designs either stay simple or become unnecessarily complex. The goal is to use the simplest fanout method that allows clean routing and reliable manufacturing.

Start with the Least Complex Fanout

• Dog-bone fanout → Suitable for BGAs with pitch ≥ 0.8 mm
• Microvia fanout → Commonly required at 0.65 mm pitch
• Via-in-pad → Often necessary for ≤ 0.5 mm pitch

Escalating fanout too early increases cost and manufacturing risk without improving results.

Use Pitch-Based Fanout Rules

• ≥ 0.8 mm → Traditional or mixed fanout
• 0.65 mm → Microvia-based HDI fanout
• ≤ 0.5 mm → Via-in-pad with HDI stackup

Using pitch as the decision driver avoids trial-and-error routing.

Use Via-in-Pad Carefully

Via-in-pad improves routing density but must include via filling and planarization. It should be used only where routing cannot be completed otherwise.

Prefer Staggered Microvias

• Staggered microvias → Higher reliability and yield
• Stacked microvias → Use only when routing density demands it.

Stackup Design for HDI BGA Boards

In HDI BGA designs, stackup selection is not just a signal integrity decision—it directly affects routing success, cost, yield, and lead time. A well-chosen stackup simplifies fanout and routing, while a poorly planned one forces late design changes and unnecessary complexity. The goal is to use the minimum stackup that meets routing and performance requirements.

Start Simple and Escalate Only When Necessary

Designers should always begin with the simplest viable stackup and increase complexity only if routing cannot be completed cleanly.

• 4-layer stackups may still work for larger-pitch BGAs and low-speed designs but often struggle with dense fanout.
• 6-layer stackups provide better separation of signal, power, and ground and are common for moderately dense BGA designs.
• HDI stackups become necessary when BGA pitch is small, routing channels are limited, or signal integrity cannot be maintained.

Adding layers alone does not solve routing problems if fanout and via strategy are not aligned with the stackup.

Common HDI Stackups Used for BGA Designs

Certain HDI stackup structures are widely used because they balance routing flexibility and manufacturability.

• 1+N+1 stackup: An entry-level HDI option that adds one HDI layer on each side of a conventional core. It works well for many fine-pitch BGAs and offers a good balance between density and cost.
• 2+N+2 stackup: Provides additional routing layers for high-density BGAs and complex designs. This structure is common in networking, computing, and compact embedded systems.
• 3+N+3 and higher: Used only when routing density is extremely high. These stackups significantly increase cost, complexity, and yield risk and should be avoided unless absolutely required.

>> More Details about Common HDI Stackup Types (1+N+1, 2+N+2 and More)

Stackup Planning Rules That Prevent Rework

Effective stackup planning follows a few practical rules:

• Place solid ground planes adjacent to high-speed signal layers to maintain stable reference paths.
• Keep power planes close to load layers to reduce inductance under BGAs.
• Maintain symmetry in the stackup to reduce warpage during lamination and assembly.
• Align layer structure with manufacturer standard stackups whenever possible.

Late stackup changes are one of the most common causes of HDI redesigns and schedule delays.

Signal Integrity & Power Integrity Under BGAs

In HDI BGA designs, most SI and PI issues are caused by poor escape routing, broken reference planes, and weak power delivery under the BGA—not just high data rates. These problems are hard to fix later and often appear only during testing or early production.

Signal Integrity (SI) and Power Integrity (PI) Guidelines Under BGAs

Manufacturing & DFM Guidelines for HDI BGA Designs

Many HDI BGA designs that pass schematic and layout checks still fail during fabrication or assembly. The root cause is usually not missing rules, but design choices that exceed practical manufacturing limits. Early DFM alignment is critical to control yield, cost, and lead time.

Key DFM Rules That Matter

Microvias

• Keep microvia aspect ratios conservative
• Avoid stacked microvias unless routing truly requires them
• Use via-in-pad only for fine-pitch BGAs and inner-row access

Via-in-Pad

• Always specify filled and planarized vias
• Poor via filling leads to solder wicking and weak BGA joints

Alignment & Tolerances

• Do not over-reduce annular rings or trace-to-via spacing
• Tight tolerances increase misalignment risk and scrap rate

Stackup Selection

• Use manufacturer-supported HDI stackups
• Minimize sequential lamination cycles
• Choose the simplest stackup that routes cleanly

Assembly Considerations

• Ensure flat pad surfaces under BGAs
• Define solder mask openings clearly
• Avoid thermal imbalance near large BGAs

Why Early DFM Review Matters

Early collaboration with the manufacturer helps:

• Validate fanout and via strategy
• Confirm stackup feasibility
• Prevent late design changes and delays

From a NextPCB manufacturing perspective, early DFM review significantly improves first-pass yield and ensures HDI BGA boards scale smoothly from prototype to volume production.

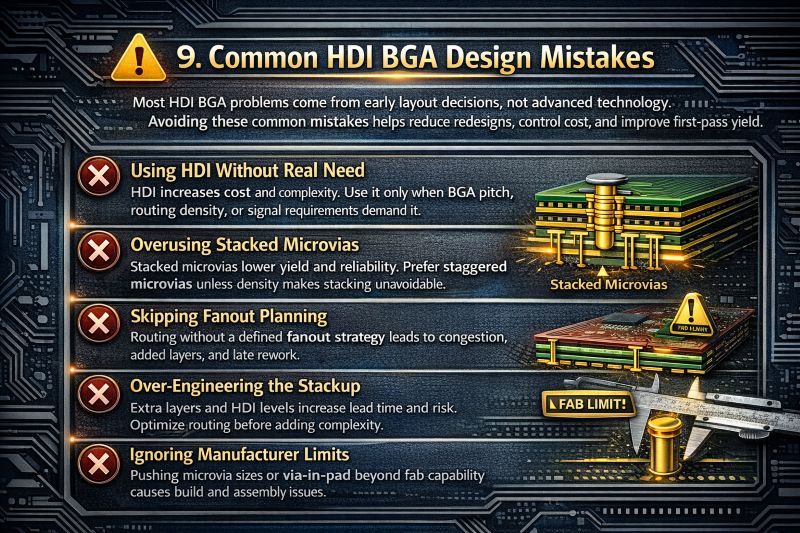

Common HDI BGA Design Mistakes

Common HDI BGA design mistakes that increase cost, reduce yield, and cause late-stage redesigns in high-density PCB layouts

Most HDI BGA problems come from early layout decisions, not advanced technology. Avoiding these common mistakes helps reduce redesigns, control cost, and improve first-pass yield.

• Using HDI without real need HDI increases cost and complexity. Use it only when BGA pitch, routing density, or signal requirements demand it.
• Overusing stacked microvias Stacked microvias lower yield and reliability. Prefer staggered microvias unless density makes stacking unavoidable.
• Skipping fanout planning Routing without a defined fanout strategy leads to congestion, added layers, and late rework.
• Over-engineering the stackup Extra layers and HDI levels increase lead time and risk. Optimize routing before adding complexity.
• Ignoring manufacturer limits Pushing microvia sizes or via-in-pad beyond fab capability causes build and assembly issues. Manufacturer limits should guide design choices.

Practical Engineer Checklist for HDI BGA Designs

Before sending an HDI BGA design to fabrication, engineers should verify that key decisions have been validated. This checklist helps ensure routing feasibility, manufacturing readiness, and reliable assembly—before costly revisions are required.

BGA & Fanout Planning

• BGA pitch and pin count confirmed
• Fanout method selected based on pitch and density
• Via-in-pad used only where required
• Staggered microvias preferred over stacked where possible

Stackup Validation

• Stackup chosen to match routing requirements, not assumptions
• Signal, power, and ground layers clearly defined
• Reference planes placed adjacent to high-speed signal layers
• Stackup aligned with manufacturer-supported structures

Signal & Power Integrity

• High-speed signals have continuous reference planes
• Power pins under BGAs have short, low-inductance paths
• Decoupling capacitors placed close to BGA power pins
• Ground return paths verified through the escape region

Manufacturing & Assembly Readiness

• Microvia sizes and aspect ratios within manufacturer limits
• Via-in-pad filling and planarization specified where used
• Registration and tolerance margins reviewed
• Assembly constraints for fine-pitch BGAs checked

DFM & Final Review

• Early DFM review completed with the manufacturer
• Fanout and stackup frozen before detailed routing
• Cost and lead-time impact reviewed
• No late-stage changes pending

When HDI Is Worth the Cost

HDI PCBs offer clear routing and performance advantages, but they also increase cost and fabrication complexity. HDI should be used only when it solves real layout or signal limitations—not by default.

Use HDI When:

• BGA pitch is ≤ 0.65 mm and dog-bone fanout no longer works
• High pin-count processors or FPGAs cause routing congestion
• Board size is fixed and cannot be increased
• High-speed or RF signals require short, controlled escape paths
• Product value justifies higher PCB cost (compact, performance-driven designs)

Skip HDI When:

• Routing completes cleanly on a standard 4–6 layer board
• Board size can be increased without issue
• Signal speeds and power demands are moderate
• Cost sensitivity is the primary concern

In many cases, a well-optimized multilayer PCB delivers better cost-to-performance than unnecessary HDI complexity.

Conclusion

Successful HDI BGA designs are built on early fanout planning, realistic stackup selection, and design-for-manufacturability (DFM) alignment. Choosing the simplest HDI solution that meets routing and performance requirements helps control cost, improve yield, and reduce development cycles.

From a manufacturing perspective, early collaboration with experienced HDI PCB manufacturers such as NextPCB ensures that fanout strategies, via structures, and stackups are feasible and optimized for production, enabling a smooth transition from prototype to volume manufacturing.
