RS-274D vs. RS-274X Gerber: The Technical Evolution of PCB Data Transfer Standards

Abstract: The Gerber format is the industry standard for PCB data exchange. Compared to the early RS-274D, RS-274X and its successors (X2/X3) introduced core innovations in data self-containment, aperture definition, transfer integrity, and metadata support. This article analyzes the technical specifications of these formats and discusses their specific impact on Design for Manufacturing (DFM) and automated production efficiency.

1. Table of Contents
2. 1. Technical Background: Vector Photoplotting and RS-274D
3. 2. Technical Innovations in RS-274X (Extended Gerber)
4. 3. Metadata Expansion and Smart Manufacturing Trends
5. 4. Conclusion: Technical Practices for PCB Engineers

1. Technical Background: Vector Photoplotting and RS-274D

The Gerber format was originally designed to drive Vector Photoplotters. These devices utilized a mechanical structure to control a light source moving over a photosensitive film to achieve the physical imaging of circuit patterns.

Technical Limitations of RS-274D (Standard Gerber)

RS-274D is a subset of the EIA RS-274-D standard, effectively serving as a coordinate instruction set for numerical control (NC) machines. Its design intent was to control mechanical movement rather than describe complex electronic logic.

• Impact of Non-Self-Contained Data on Precision: RS-274D files contain only X/Y coordinate data and basic plotting commands. Since it lacks information regarding line widths or geometric parameters, data transferred between different CAD/CAM systems is prone to parsing ambiguity. This limitation prevents native assurance of geometric accuracy, necessitating manual verification.
• Dependence on External Aperture Lists: Parsing RS-274D data requires an independent external text file. This file maps D-Codes to specific shapes and dimensions (e.g., D10 corresponds to a 0.25mm circle).

1. - Efficiency Loss and Risk: Due to the lack of a standardized format for aperture lists, manual input of mapping parameters reduces pre-production efficiency and introduces significant risks to transfer integrity. Any parsing error results in physical pads deviating from the design intent.

• Logic Flaws in Polygon Filling: RS-274D lacks native instructions for Area Objects. Large copper areas must be described using thousands of overlapping fine lines (Vector Fill/Painting). This causes data volume to grow exponentially, increasing the computational load on CAM systems and extending photoplotting time.

2. Technical Innovations in RS-274X (Extended Gerber)

In 1998, Ucamco introduced the RS-274X standard. As a superset of RS-274D, it reorganized the data structure to resolve issues regarding independent transfer and precision control.

Core Technical Advantages of RS-274X

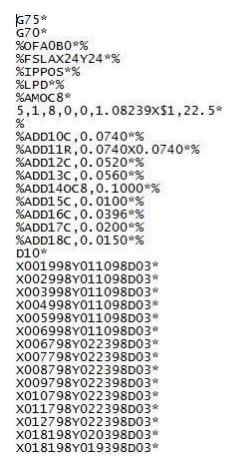

1. 1. Data Self-Containment: RS-274X embeds aperture definitions, unit settings, and format information directly into the file header. This ensures that geometric information remains reliable across different design and production environments, eliminating manual configuration and enabling seamless CAD-to-CAM transition.
2. 2.  Object-Oriented Description: By introducing Aperture Macros (AM) and Area instructions (G36/G37), complex pads and polygons are described by single instructions rather than line stacks. This reduces file size and ensures absolute precision during CAM parsing.
3. 3. Polarity Management: Through Polarity commands (LP), RS-274X supports overlapping and knockout effects within the same layer. This logical flexibility makes the description of complex multi-layer circuits intuitive and reduces graphical distortions caused by Boolean operation errors.

Technical Recommendation: To ensure accurate transfer of design intent, engineers should prioritize exporting RS-274X or higher in modern CAD environments.

3. Metadata Expansion and Smart Manufacturing Trends

In the context of Industry 4.0, geometric information alone is insufficient for fully automated production. Ultra-High Density Interconnect (UHDI) requires data to possess functional "attributes" in addition to "shapes."

The Value of Metadata for Automated Manufacturing

While RS-274X accurately describes graphics, it cannot identify the electrical attributes of objects (e.g., distinguishing a via from a component pad). This lack of metadata necessitates manual intervention during automated DFM checks and process adjustments.

Evolutionary Path of Modern Data Transfer Formats

Technical Selection and Implementation

For designs involving HDI technology or complex high-frequency circuits, it is recommended to adopt IPC-2581 or ODB++. These formats provide detailed netlist definitions and physical stackup information, ensuring consistency across design, fabrication, and assembly (PCBA). Furthermore, utilizing Gerber X2 to add attribute tags (such as identifying impedance-controlled lines) can significantly shorten the preparation cycle for AOI and electrical testing.

4. Conclusion: Technical Practices for PCB Engineers

From a technical evolution perspective, RS-274D is no longer capable of meeting the precision and efficiency requirements of modern PCB manufacturing and should be completely deprecated.

The following strategies are recommended for different production scenarios:

1. - Mass Production & General Projects: Utilize RS-274X as the standard for ensuring accurate transfer and basic automation support.
2. - High-Precision & Quick-Turn Projects: Prioritize Gerber X2 to improve pre-production automation through attribute metadata while maintaining compatibility.
3. - System-Level Integration & Complex HDI: Adopt IPC-2581 or ODB++ to minimize human error during data parsing and ensure high yields in advanced manufacturing.

References:

• Ucamco Gerber Format Specification
• IPC-2581 Consortium Standards
• IPC DFM Guidelines (International Electronics Manufacturing Initiative)
