Surface Mount Devices(SMD) on PCB

Posted:11:42 AM May 24, 2021 writer: tom

Why SMD Part Sourcing remains in Great Need?

In the previous lesson, we checked out push-through electrical wiring of digital elements and also various other aspects to a published circuit card. I make sure that every little thing exercised for you as well as there were no troubles, given that this setup approach was initially created for hands-on soldering. It is good enough for making fairly straightforward electronic device styles.

Technologies for the manufacturing of digital gadgets started with this. In the past, every little thing was done by hand. Nonetheless, innovations are boosting, and also automated makers progressively started to change manual work. Unique devices have actually shown up which is an automated setting that has the ability to organize digital parts on the board.

Electrical Wiring Concept of Automatic Setting Up of Boards

It is apparent that the through-wiring concept is not appropriate for the automated setting up of boards for unbiased factors. The requirement to flex the pins of the parts as well as orient them right into the holes makes automation really tough, costly, and also not practical. As a result, a surface mount components technique has actually been created to streamline the placing of elements aboard. When installed by doing this, unique pads are supplied on the board, to the surface area of which digital elements are soldered. And also the technique itself comes down to a number of phases:

So, from the viewpoint of the concepts of soldering parts, they are split right into 2 teams: parts without legs (these are resistors, capacitors), and also parts with legs-contacts (microcircuits, transistors, stabilizers, and so on).

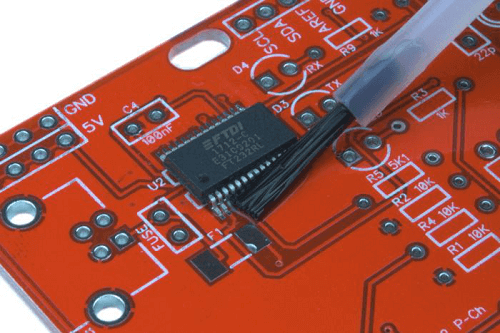

  • First. After using the change to the pads to which the microcircuit is soldered, it is needed to install it really properly with tweezers so as not to mistakenly solder the legs to other individuals' pads. When mounting, do not forget the coincidence of the keys on the board as well as the microcircuit.
  • Second. For benefit, initially, one leg is soldered on each side of the microcircuit (or 1 leg, if a part) to ensure that it is repaired (picture 5). While soldering the legs, hold the microcircuit with tweezers to ensure that it does stagnate when soldering. Afterward, it is essential to oil the legs of the microcircuit with change once more (picture 6).

Surface-mount-components-05Surface-mount-components-06

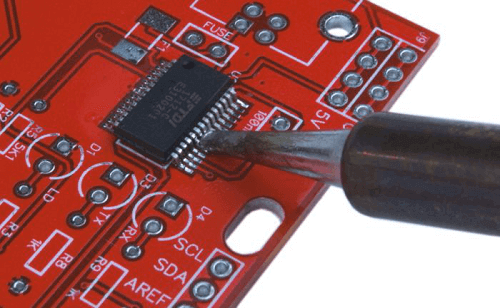

  • Third. The legs of the SMD element are extremely close together, so you can not touch the idea of the welding torch to every leg independently. When you bring the suggestion to the calls, you will certainly touch a number of legs at the same time. For that reason, a soldering method called "drop-wave" is utilized. It is a consecutive transmission of a really tiny decline of solder on the blowpipe suggestion with a row of microcircuit legs (in the instructions throughout the legs). It ends up that the decrease rolls from one leg to the various other.

Because of the visibility of change, the solder immediately tops the board location as well as over the part of the part body that is planned for soldering. This develops a little bead that is attached to both the element as well as the board surface area at the same time.

Additionally, for every sort of chip plan or element, requirements are embedded in regard to measurements. For instance, the range in between the facilities of the get-in touches with SO as well as SOIC bundles are 1.27 mm, and also the range in between TSOP or QFP chips can be from 0.8 mm to 0.5 mm, relying on the chip design. Which, you see, is a lot less than 2.54 mm in DIP chips planned for through-mounting.

Soldering Parts without Feet

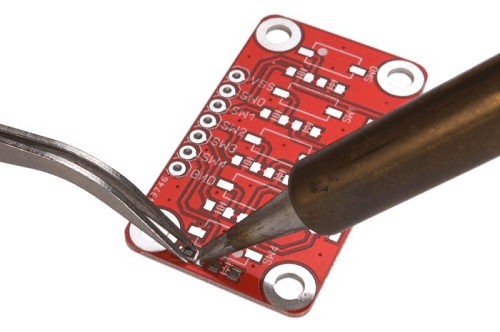

Every little thing is extremely straightforward with them. Lube the board surface mount with change. Place a fair bit of solder on the idea of the welding torch and also hold the welding torch in one hand. With your various other hands, hold the tweezers and also utilize the tweezers to grasp the center of the body to ensure that the sides of the body are totally free. Next off, utilize tweezers to bring the part to the marked put on the board to make sure that completions of the element are straight over the soldering pads. Hold the element, and also at the same time touch the side of the instance closest to you with the sting (picture 3).

Surface-mount-components-03

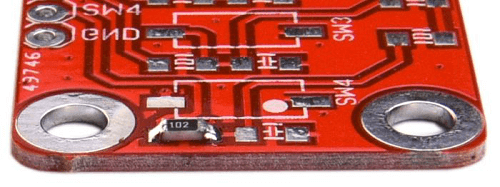

When the solder strengthens, the element will certainly be dealt with. Currently, you can get rid of the tweezers as well as duplicate the very same treatment with the various other ends of the part. Take some even more solder with the pointer and also touch it to the 2nd end. After the solder has actually strengthened, the part will certainly be soldered. In this situation, the solder will certainly not hop on the surface area of the board covered with varnish (solder mask) or on the PCB without copper aluminum foil, considering that it does not chemically communicate with it. In this manner, the part will certainly be soldered precisely where you require it (image 4).

Surface-mount-components-04


Soldering Elements with Pins

However with the soldering of elements with legs, whatever is a lot more challenging. There are numerous essential nuances below.

The Effect of Dimension on the Manufacturing of SMD Elements.
The truth is that as a result of the little dimension, the manufacturing expense of SMD parts is significantly less than that of large elements in a DIP-type bundle. Because of this, makers of digital tools make use of generally ICs in such plans for securing onto their published motherboard. This makes completion tools more affordable as well as much more portable.

The area for mounting each element is identified (do not ignore the secrets and also markings);
The change is put on the website to which the part is soldered;
An element or microcircuit is positioned on the board and also accepted tweezers to make sure that all calls purely accompany the pads planned for them;.
After initial dealing with, all get in touches with of a part or microcircuit are soldered;
The board is cleaned from slag and also change deposits;

  PCB Assembly Quote


The board is dried out after cleaning

Given that all these phases are well defined in the previous lesson, in this lesson we will certainly stay in even more information just on the straight procedure of soldering SMD parts.

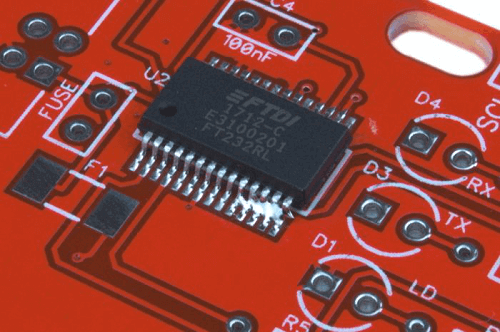

Thanks to the change, the solder spreads out just along the legs of the microcircuit as well as the pads on which the legs lie (the solder does not enter into the room in between the pads on the board because of the visibility of a solder mask). This procedure resembles running a wave. Therefore the name "drop-wave". At the same time, it is essential to perform the sting gradually, to ensure that each leg heats up, the change has time to trigger, as well as the solder spreads out along the legs (picture 7). When the solder tops the legs, you will certainly see it well, since they promptly come to be glossy. Because of this, the microcircuit or part will certainly be soldered, as well as their legs are still tinned (covered with a slim layer of solder), which boosts their resistance to rust.

Surface-mount-components-07
In order to do such a soldering strategy without anxiety and also to acquire a steady outcome, it is preferable to have a unique pointer of the "drop-wave" kind, or it can likewise be called "microwave", available. We will certainly speak about him as well as various other sorts of stings in the following lesson.

As well as if you solder them by hand, after that the substantially smaller sized measurements of the SMD parts make the soldering procedure far harder. The smaller sized the range in between the pins, the harder it is to line up the part on the board and also solder it. As well as you will most definitely need to solder them.

So often, to apply the strategy and also set up the preferred microcircuit on the board, you will certainly need to solder some elements in the SMD situation. Consequently, abilities in hands-on soldering of elements that are planned for surface area install parts ing are additionally needed.

As well as it is preferable that the get in touch with of the microcircuit not just plainly accompany the pads in the longitudinal instructions, however likewise be symmetrically situated on the pads of the board in the transverse instructions (towards the legs). This suggests that there have to coincide the size of the part of the pads sticking out from under the legs of the microcircuit on one side as well as on the various other.

When soldering parts with SMD real estate, virtually the exact same actions are adhered to as when soldering parts utilizing via electrical wiring (lesson # 2). The only distinction is that you do not require to bite off the legs standing out of the board with pliers. For the remainder, whatever is done specifically the exact same:.

Why Soldering SMD Elements are Made Complex?

As pointed out over, soldering such parts is a lot more difficult, yet not especially tough. It suffices to take tweezers in your hand, arm on your own, if essential, with a magnifying glass, master a brand-new soldering method, as well as you can securely solder such a "trifle" also.

Application of a layer of solder paste via a pattern straight to the areas of the board to which the elements will certainly be soldered. The solder paste has solder as well as change at the same time.
The device instantly puts the elements on this paste in their designated areas (it is sticky sufficient to hold the parts).
The board is put in a unique stove, in which it is warmed to the melting point of the solder in the paste, and also because of this, all elements are soldered.
Cleaning up the board from the deposits of the change included in the paste coincides just like through-hole setting up. Just for cleaning are solvents utilized that have the ability to liquify the change that belongs to the paste.
Drying out the board.

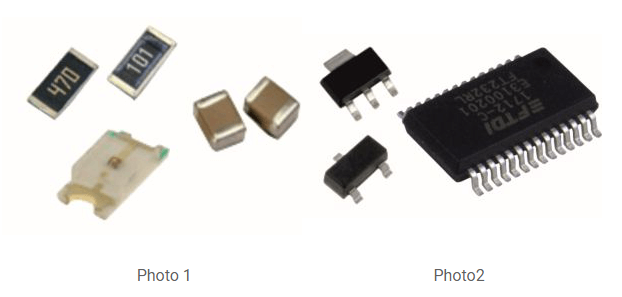

New digital elements in ideal real estate have actually been created for this installment approach. Such elements can be with leg-contacts, having a unique form for setup on the call pads of the board (Picture 1). Or they can be without legs-- calls in this situation are the side parts of the element body (Picture 2). They are straight soldered to the board pads. However all these elements, no matter kind as well as requirement, come from the course of SMD parts, that is, surface-mounted.

SMD components
In magazines with digital parts SMD, you can locate microcircuits in various situations. It can be:

  • SO (Little Overview)-- rooms with little results (get in touches with);.
  • SOIC (Little Rundown Integrated Circuit)-- incorporated circuit (microcircuit) with tiny results;.
  • TSOP (Slim Small-Outline Bundle)-- a situation with specifically tiny outcomes;.
  • QFP (Quad Apartment Plan)-- family members of IC plans with level calls for surface area place parts ing, situated on 4 sides of the microcircuit;

as well as various other types of body, in addition to variants of the ones noted above.
They all vary in shapes and size, as well as can additionally have a various variety of calls, which is commonly suggested right away after the classification. So from the classification of the SO28 instance, it adheres to that the microcircuit in this instance has 28 calls for soldering.

For that reason, SMD elements remain in wonderful need, and also the need for them is expanding, as well as the need for microcircuits in a DIP bundle has actually gone down considerably. This caused the reality that the manufacturing of several preferred microcircuits in a DIP bundle is totally reduced, as well as just their SMD variation for surface area install parts ing is created. One instance of such microcircuits is the FT232 microcircuit, which is utilized for interaction with a computer system on some versions of the Arduino programmable controller.

  • Fourth, When soldering SMD microcircuits, there need to not be a big pressure of pushing the idea to the legs, so as not to harm the idea of the blowpipe.
  • Fifth, It is really essential that there is really little solder on the welding torch throughout drop-wave soldering. If there is even more solder than required, after that solder jumpers will certainly show up in between some get in touches with of the microcircuit as in picture 8.

Surface-mount-components-08

That is, excess solder will certainly link nearby legs with a solitary decline. In this instance, the excess solder will certainly need to be eliminated with a welding torch suggestion. To do this, you require to lube the contacts with a change and also run the pointer of a blowpipe over them inside out to make sure that the solder continues to be on the pointer. After that this solder is eliminated from the idea with a sponge. The treatment is systematically duplicated up until the attachment of the legs is gotten rid of.

  • Sixth,Severe treatment needs to be taken when soldering microcircuits. The acceptable temperature level for them is not more than 260 ºС. As a result, they are not enabled to heat up for a long period of time to greater temperature levels. It is very preferable to make use of a blowpipe with power or temperature level control (soldering terminal) to make sure that the temperature level of the idea does not surpass the acceptable one as well as the calls of the microcircuit do not get too hot.

Final Thought Surface Area Mount Elements.

Probably these are all the nuances that you require to recognize for the effective soldering of SMD elements as well as microcircuits. Attempt to exercise and also delicately solder the microcircuits to the board when constructing gadgets including such parts (consisted of in the prolonged collection "Evolvector" for researching soldering, or can be bought furthermore). Ensure that there is absolutely nothing tough in such soldering. You will certainly improve and also far better with experience.
