How RS485 Works and How to Implement RS485

Posted:11:26 AM December 19, 2023 writer: iotbyhvm


This article is a detailed guide to RS485, an essential element in serial communication systems. It starts by explaining the fundamentals of serial communication, providing a foundation for understanding RS485's significance in connecting devices. The exploration delves into RS485's origins, evolution, and advantages over RS232, Rs485 protocol, Rs485 wiring, rs485 port, showcasing its resilience in real-world scenarios. The versatility of RS485 is highlighted, rs485 communication, demonstrating its applications in industrial automation, telecommunications, and building systems of rs485 converter. This exploration aims to offer practical insights for engineers, enthusiasts, and professionals, emphasizing RS485's reliability and adaptability in diverse settings. RS-485 is an example of a communication protocol.

RS485 is highlighted for its great features: it can both send and receive messages (half-duplex), work over long distances, and resist interference. This makes it a popular choice for many different uses. RS485 is like a handy messenger for machines. It's good at talking to many devices at once (multi-drop) and can work with various gadgets. This makes it widely used in industries like factories and telecommunications. Think of RS485 as a reliable way for machines to exchange information over long distances, especially in noisy places. It's like having a skilled friend passing notes between machines in places with a lot of electrical noise, like factories or buildings.

What is Serial Communication?

Serial communication is a method of data exchange utilizing one or two transmission lines, where data is transmitted and received bit by bit in a continuous manner. It is a method of transmitting data between two devices by sending it one bit at a time, sequentially, over a single wire or channel. It is widely used in various electronic devices and computer systems to establish a reliable and efficient data transfer connection. In serial communication, data is sent in a continuous stream of bits, with each bit being transmitted one after the other. This differs from parallel communication, where multiple bits are sent simultaneously over separate wires.

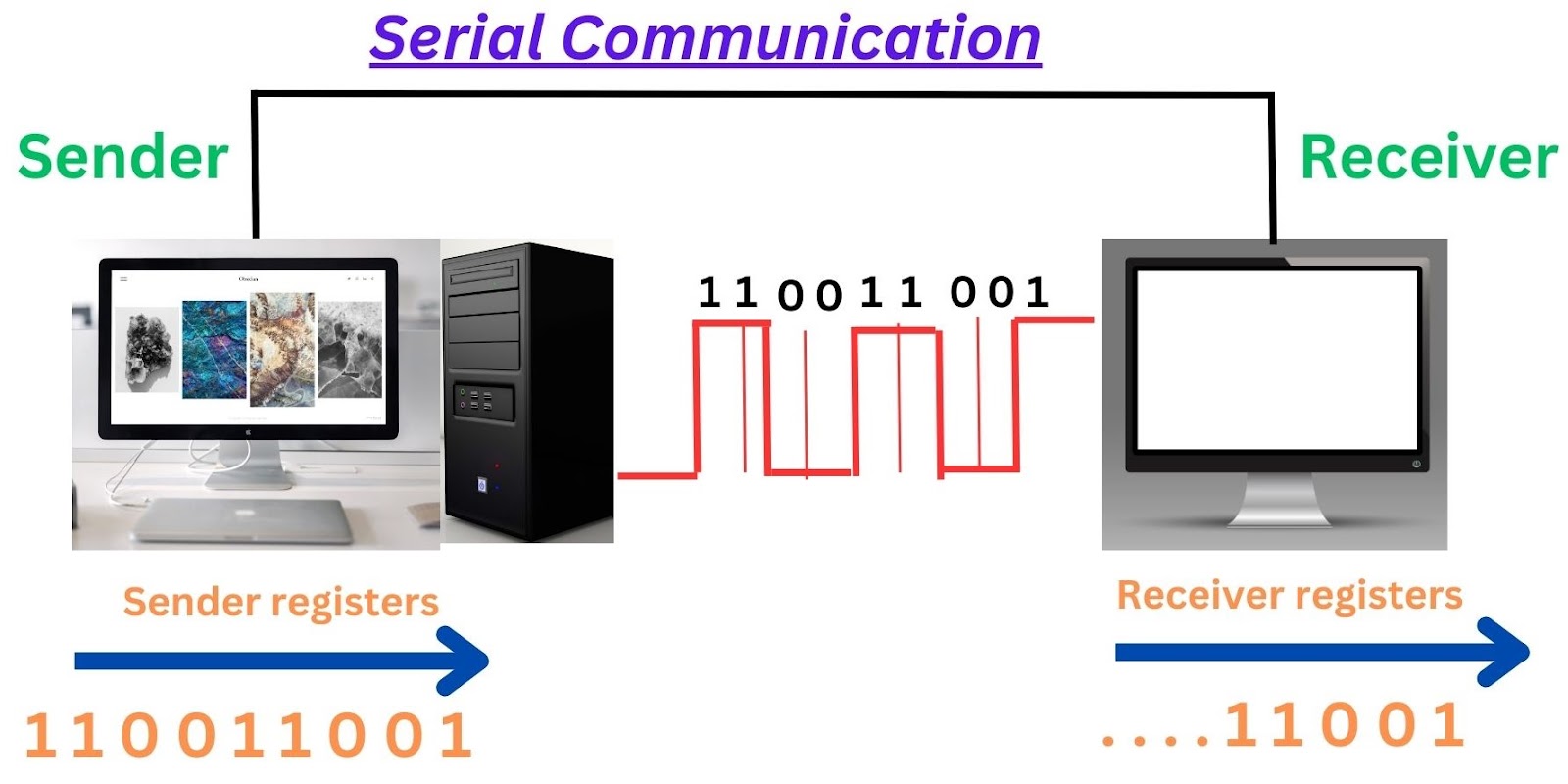

Serial_Communication Serial_Communication[/caption]

Serial communication offers several advantages over parallel communication. Firstly, it requires fewer wires or channels, rs485 interface making it more cost-effective and space-efficient. Additionally, it allows for longer transmission distances without signal degradation. There are different types of serial communication protocols, such as RS-232, RS-485, UART, SPI, and I2C. Each protocol has its own specifications and characteristics, meeting specific requirements of different devices and applications. It is widely used in various industries, including telecommunications, networking, industrial automation, and computer peripherals. It enables devices to communicate and exchange data, rs485 port, facilitating tasks such as file transfers, device control, and data logging.

What is RS485?

RS485, also known as EIA-485, is a widely used communication standard in the field of industrial automation and control systems. What is rs485 - It is a serial communication protocol that allows multiple devices to communicate over long distances using a single twisted pair of wires. Known for its robustness and noise immunity, RS 485 is suitable for industrial environments where electrical noise and interference are common. This standard supports multipoint communication, allowing several devices to connect to the same bus and communicate with each other.

RS485, an improvement over RS232, addressed issues of long-distance data transmission by employing differential signaling—a method akin to having two friends pass notes, with one writing the message and the other the inverted version, ensuring clarity amidst interference. Remarkably, RS 485 excels in extended-distance communication without requiring additional boosters, making it ideal for interconnecting machines in factories or managing communication in large buildings. Its ability to connect multiple devices simultaneously further enhances its practicality. Moreover, RS485's differential signaling cancels out noise, contributing to reliable data transmission. In a typical master-slave configuration, one device acts as the master, initiating and controlling communication with slave devices, highlighting its versatility in various applications.

Get Instant Online Quote

Application of RS485

The adaptable communication standard RS-485 is widely used in various applications due to its robustness, reliability, and ability to support long-distance communication. Some common applications of RS-485 include:

  1. Industrial Automation: Industrial automation systems extensively use RS-485 for communication between programmable logic controllers (PLCs), sensors, actuators, and other devices.
  2. Data transmission speed: RS485 supports data transmission speeds of up to 10 Mbps, depending on the cable length and other factors. This is sufficient for many industrial and automation applications..
  3. Multi-drop network: RS485 supports a multi-drop network topology, allowing up to 32 devices to connect to a single bus. This simplifies wiring and reduces installation costs compared to point-to-point connections.
  4. Access Control Systems: Security systems, including access control panels and card readers, often use RS-485 for communication. The multi-drop capability allows multiple access control devices to share the same communication line.
  5. Long-distance communication: RS 485 supports data transmission over long distances, typically up to 1200 meters at a baud rate of 9.6 kbps. This makes it ideal for connecting devices in geographically dispersed locations.
  6. Solar Power Systems: Solar power systems use RS-485 for communication between solar inverters, charge controllers, and monitoring devices. Its noise immunity is particularly advantageous in outdoor environments.

How RS485 Works

RS485 employs a differential signaling scheme, transmitting data using two wires: one for the positive signal (A) and one for the negative signal (B). Balanced signals involve two lines within a twisted pair cable, sharing the same impedance for each line.  This differential signaling helps in reducing the effects of noise and interference, making RS485 suitable for long-distance communication.

The fundamental operation of RS485 involves two wires, enabling half-duplex data transmission. In this mode, data can move in either direction between devices, but not simultaneously. Expanding the system to include an additional two wires, resulting in a four-wire configuration, facilitates full-duplex data transmission. In full-duplex, data can flow simultaneously in both directions between devices. It's worth noting that in a full-duplex arrangement, communication typically restricts itself to a master-slave configuration, meaning slaves cannot directly communicate with each other.

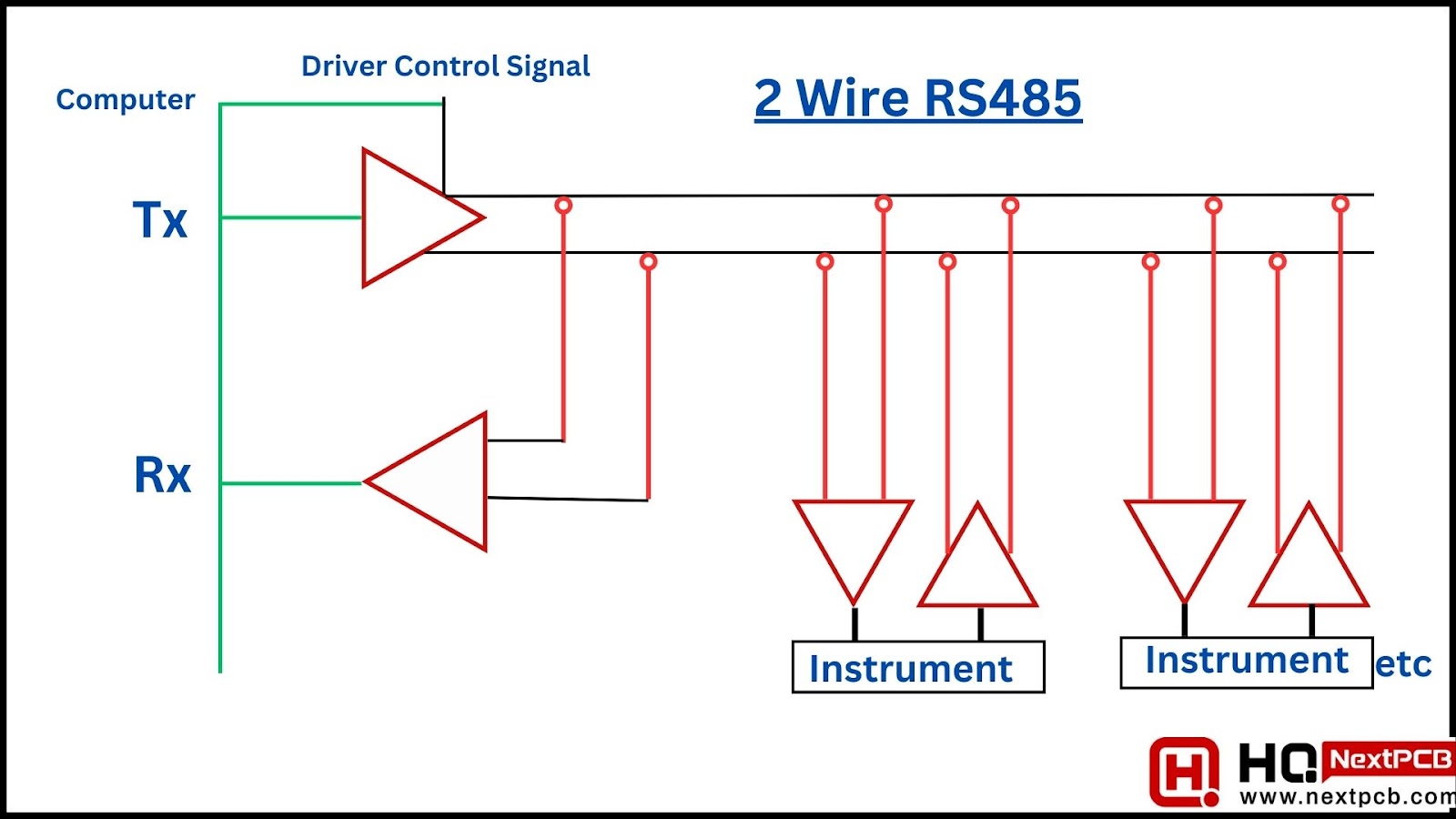

  • 2 Wire Half Duplex System : TX (transmit) and RX (receive) indicate the signals being sent and received, often represented by triangle orientations. In this configuration, both TX and RX signals travel over a single pair of wires. Consequently, this arrangement restricts the system to half-duplex data transmission, where data can only move in one direction at a time between devices. Simultaneous bidirectional communication is not possible due to the shared nature of the transmission medium.


  • 4 Wire Full Duplex System : In this scenario, TX and RX each have their dedicated two wires for data transmission. This configuration allows for simultaneous transmission and reception of data between devices, enabling more efficient and concurrent communication.



Advantages of RS485

RS-485 offers several advantages that contribute to its widespread use in various applications:

  1. Long Communication Distance: RS-485 supports communication over longer distances compared to many other serial communication standards. It can operate reliably over distances of up to 1.2 kilometers (about 4,000 feet) or more, making it suitable for applications requiring communication across large areas.
  2. Multi-Drop Capability: RS-485 permits connecting multiple devices (up to 32 or more) on the same communication line. This multi-drop capability simplifies wiring and enables cost-effective communication networks where several devices share the same bus.
  3. Noise Immunity: RS-485 employs a balanced differential signaling mechanism, transmitting the signal as the voltage difference between two wires (A and B). This makes it more immune to common-mode noise and interference, ensuring reliable communication in electrically noisy environments, such as industrial settings.
  4. Half-Duplex and Full-Duplex Modes: RS-485 can operate in both half-duplex and full-duplex modes. In half-duplex, communication occurs in one direction at a time, while full-duplex allows simultaneous communication in both directions. This flexibility accommodates various communication requirements in different applications.
  5. Simple Wiring: RS-485 typically requires only two twisted-pair wires for communication. The simplicity of the wiring makes installation and maintenance easier, contributing to cost-effective and efficient communication network setups.
  6. Low Cost: RS-485 is a cost-effective solution for serial communication. The simplicity of its hardware and wiring, combined with its robust performance, makes it an economical choice for various applications.
  7. Wide Adoption and Compatibility: RS-485 is a well-established and widely adopted standard. Designers create many devices and systems, such as sensors, controllers, and communication modules, to be compatible with RS-485.
  8. Suitable for Multi-Vendor Environments: The standardization of RS-485 ensures interoperability between devices from different vendors. This makes it easier for users to build systems with components from various manufacturers without worrying about compatibility issues.

Get Free PCB Assembly

RS485 Tools

There are several types of tools available for working with RS 485 networks, each serving a specific purpose:

RS 485 Tools RS 485 Tools[/caption]

Hardware Tools:

  • RS485 Transceiver: This is the fundamental building block of any RS 485 network. It converts TTL signals to and from the differential RS485 signals.
  • RS485 Repeater: Used to extend the maximum cable length of a network by regenerating the signal.
  • RS485 Terminator: Placed at each end of the network to absorb any reflections and ensure signal integrity.
  • RS485 Converter: Rs485 converter converts between RS485 and other communication protocols like RS232, USB, or Ethernet.
  • RS485 Isolators: Provide electrical isolation between devices on the network, protecting them from ground loops and other electrical hazards.

Software Tools:

  • RS485 Analyzer: Monitors and analyzes the data traffic on the RS485 network, allowing you to troubleshoot communication problems and verify data integrity.
  • RS485 Protocol Analyzer: Rs485 protocol used to decoding and displaying the specific protocol used on the network provides valuable information for debugging and understanding the communication flow.
  • RS485 Configuration Software: Used to configure various parameters of RS 485 devices, such as baud rate, address, and error checking settings.
  • RS485 Communication Libraries: Rs485 communication provide pre-built functions for communicating with RS485 devices from various programming languages.

General-purpose tools:

  • Oscilloscope: You can use it to view the electrical characteristics of the RS485 signals, aiding in diagnosing signal integrity issues.
  • Protocol sniffer: Captures and displays all the data traffic on the network, regardless of the specific protocol used.
  • Multimeter: You can use it to measure voltage and current on the RS485 lines, aiding in identifying wiring issues.

Choosing the right tool depends on your specific needs and the application you are working with.


In conclusion, RS485 is a versatile and powerful communication standard offering several advantages over other serial protocols. Its long-distance communication capabilities, high noise immunity, multi-drop network support, and high data rates make it ideal for various applications in industrial automation, building management systems, data acquisition, what is rs485, rs485 wiring, rs485 protocol and many more. With its ease of implementation, reliability, and affordability, RS485 is a popular choice for engineers and technicians seeking a robust and efficient communication solution.

RS485 emerges as a versatile and robust communication standard, widely applied in various industries due to its resilience and efficiency. Its capacity for long-distance communication, support for multi-drop configurations, and resistance to noise position it as an ideal choice for diverse communication requirements. The cost-effectiveness, compatibility, and versatility of RS485 make it a go-to solution, minimizing wiring and relay equipment costs. RS-485 is an example of a communication protocol. Practitioners benefit from a suite of essential tools for implementing RS485, including adapters, converters, testers, and protocol analyzers, facilitating seamless configuration and troubleshooting. In essence, RS485 stands as a reliable and cost-effective communication protocol, offering practitioners the means to establish efficient communication between devices over extended distances in applications ranging from industrial automation to building control systems.
