Our $0 special offer has ended. Please check out our other highly reliable products and special offer. Thank you for your attention.
Let you experience the high and reliable quality, fast delivery time and excellent service of NextPCB products, and seek deeper cooperation in the future
● Successful registration to get $100 coupons
● The coupon can only be used to deduct the amount of the product in the order, and does not include shipping fee;
Users who have successfully registered can enjoy the first order of $0 PCB pototype, the conditions are limited to:
Material: FR-4, Layers: 1-4 layers, Quantity: 5/10pcs;
Size: less than 100*100mm, more than 30*30mm;Other parameters: default general parameters, special processes are not involved;
Daily experience 1 PCB prototype order’s condition:
You can daily experience a $2 for 1/2-layer PCB order and a $6 for 4-layer PCB order;
Material: FR-4, number of layers: 1-4 layer, quantity: 5/10pcs.
Size: less than 100*100mm, more than 30*30mm; Other parameters: default regular parameters, special processes are not involved.
● The same Gerber file cannot be submitted twice by the same account or by different accounts within the same cycle. The above offers are for different orders with different delivery addresses, Email, Phone and IP, if the same, the first order shall prevail.
● The validity period of the first $0 order: Complete the payment of the order within 90 days after successful registration.
NextPCB reserves the right of final interpretation of the above contents, if you have any questions, please contact firstname.lastname@example.org
● Not a broker
● 1 PCB Prototype Factory
● 1 PCB Mass Production Factory
● 2 SMT Factory
● Advanced high-precision equipments
● IATF16949/ISO 9001/ISO 14001/UL/RoHS/REACH
● Superior-quality raw materials
● 100% Quality Assurance
● As Fast As 24 hours turnaround
● On-time delivery rate of prototype reached 99.59%
● Provide Expedited service
● PCB can undertake 1-32 layers
● HDI Rank 3
● SMT daily production capacity exceeds 95 million points
● 27 SMT Lines
NextPCB is a real PCB assembly manufacturer with Four factories and its own inventory of components.
In order to ensure quality, NextPCB uses the most advanced equipment, such as Taiwan Dongtai Drilling Machine, Japan MEIKI Vacuum Hot Press Machine, Taiwan Haking Plating Line, Cosmic Horizontal Line, High-end LDI Laser Exposure Machine, Digital Print Character Printer, German Imported Flying Probe Tester, Siemens Placement Machine, Sunsense X-ray Inspection, Ming Rui AOI Tester, Jinto 10 Temperature Zone Reflow Soldering and so on; we have the most professional technicians with over 10 years of experience.

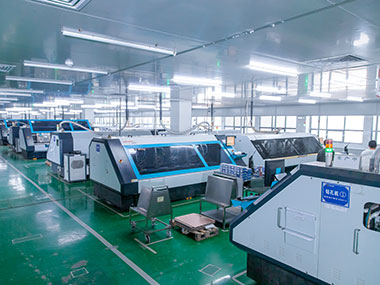

• Imported high precision drilling machine, good stability
• Automatic detection of tool diameter and tool change, eliminating distorted drilling and leakage of holes
• Minimum hole diameter 0.15MM
• Taiwan High-end Brand

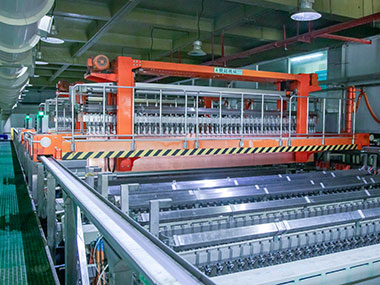

• Copper plating is more uniform and stable
• 90 minutes of ultra-long electroplating, copper thickness far exceeds industry standards

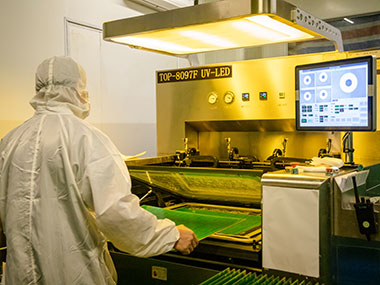

• Direct laser imaging, faster
• No film alignment error, more accurate
• More precise lines, minimum line width and line spacing 3/3MIL
• High membrane residue removal rate, reducing the risk of defects
• High vacuum etching uniformity, reduce side etching, high quality
• It can produce ultra-precision wires with minimum line width and line spacing of 3/3MIL
• Dual table independent operation mode
• Flexible operation, double molding speed
• Precision of gong plate ±0.1mm
• 100% test before shipment to prevent open short circuit
• High speed flying probe tester, accurate and fast
• Ensure that every piece delivered to the customer is of good quality
|Layer count||1-32layers||Quantity of copper layers on the board||/|
|PCB thickness||0.6/0.8/1.0/1.2/1.6/2.0/2.5/3.0/3.2mm||The thickness of finished board|
|Surface finish||HASL/Lead free HASL/ENIG/OSP||/||/|
|Finished copper weight||1 oz/2 oz/3 oz/4 oz/5 oz/6 oz||Finished copper weight of outer layer could be 1oz/2oz/3oz/4oz/5oz/6oz|
|Inner copper weight||0.5 oz/1 oz/2 oz/3 oz/4 oz||Finished copper weight of inner layer could be 0.5oz/1oz/2oz/3oz/4oz|
|Impedance||4-32 Layers PCB,PCB Stackup designed by NextPCB(bydefault),or PCB Stackup designed by customers||Impedance affected by Impedance calculation parameters & PCB stackup structure||/|
1-2 layers: 500*600mm
4-32 Layers: 400*500mm
|The maximum dimension that NextPCB can do|
|Electrical test||Flying Probe/Special test fixture||No limits for Flying Probe.Max.14000 Pads can be tested by PCB test fixture||/|
If you need a custom PCBA, our experienced team is happy to work with you
You will ultimately get our high-quality product which is produced by using advanced imported equipment, and 100% AOI checking, E-test and inspect test to ensure that all aspects of production meet strict standards.
We provide 24-hour prototype service, for batch orders, this depends on your actual order size and the number of PCB layers (we support 1-32 layers), and we provide additional expedited services, which can be consulted by our professional engineering customer service.
We generally accept the following file formats: .pcb / .pcbdoc / .cam / .brd and Gerber files, if you have other file formats, you can convert them to a production-compliant file format by following the method we provide: https://www.nextpcb.com/helpcenter
We offer a secure and convenient online ordering platform, if you are placing an order on our NextPCB website for the first time, you can follow this tutorial to complete your order. https://www.nextpcb.com/news/how-to-order-a-pcb-on-nextpcb
We accept payment methods: Paypal, Bank Transfer, Western Union, Visa, Master, Payoneer and Cash.
We have 4 factories with advanced equipment, reliable technology, high productivity and low labor cost.
Sometimes we also have special offers for our customers to experience our high-quality products and fast lead time service.
Yes, we offer Through Hole, Blind Via, Buried Via services. For other special requirements, please contact our professional engineers.
We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from you, nor we'll share these files with any other 3rd parties. At your request, we can sign an NDA for extra security.
If you have any questions about PCB manufacturing, please feel free to send us a message
